You are here: Home » Products » NA300

This product has been off the shelf!

Share to:

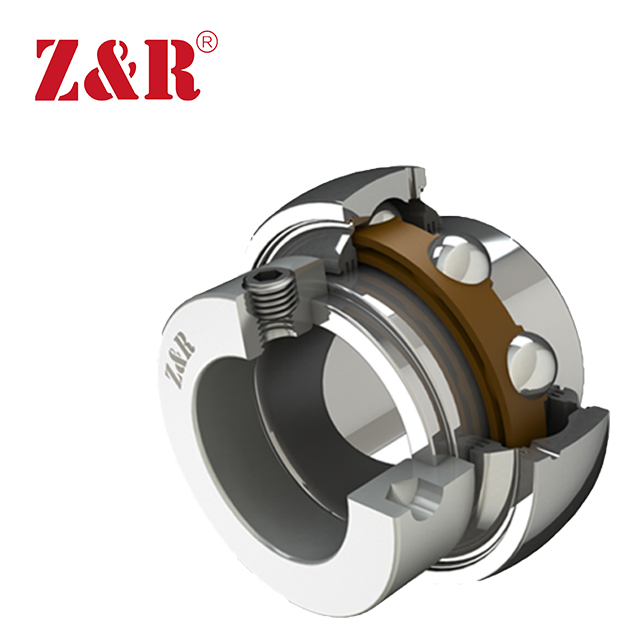

NA300

Availability:

NA 300 bearing NA 300 bearing manufacturer Insert Bearings Insert bearing manufacturers Insert spherical bearing supplier Spherical Bearings Insert spherical bearing factory bearing bearing manufacturer Bearing factory

Shaft diameter mm/in.	Bearing Type NO.	Dimensions (mm)								Set screw specifications (mm)	Load (Kgf)		weight (Kg)
d		D	d1	Bi	L	n	m	Be	W	(UNF)	Cr	Cor
7/8	NA 305-14	62.0	35.5	34.9	46.8	16.7	30.1	21.0	42.8	M8x1 5/16-24	2280	1770	0.45
15/16	NA 305-15
25	NA 305
1	NA 305-16
1-1/8	NA 306-18	72.0	44.5	36.5	50.0	17.5	32.5	24.0	49.2	M8x1 5/16-24	2760	1550	0.65
30	NA 306
1-3/16	NA 306-19
1-1/4	NA 307-20	80.0	49.0	38.1	51.6	18.3	33.3	25.0	55.5	M8x1 5/16-24	3420	1960	0.80
1-5/16	NA 307-21
35	NA 307
1-7/16	NA 307-23
1-1/2	NA 308-24	90.0	56.5	41.3	57.1	19.8	37.3	28.0	63.5	M10x1.25 3/8-24	4140	2450	1.10
1-9/16	NA 308-25
40	NA 308
1-5/8	NA 309-26	100.0	62.0	42.9	58.7	19.8	38.9	30.0	69.8	M10x1.25 3/8-24	5410	3250	1.50
1-11/16	NA 309-27
1-3/4	NA 309-28
45	NA 309
1-7/8	NA 310-30	110.0	69.0	49.2	66.6	24.6	42.0	32.0	76.2	M10x1.25 3/8-24	6300	3860	1.85
1-15/16	NA 310-31
50	NA 310
2	NA 311-32	120.0	75.0	55.6	73.0	27.8	45.2	34.0	82.5	M10x1.25 3/8-24	7300	4570	2.35
2-1/8	NA 311-34
55	NA 311
2-3/16	NA 311-35
2-1/4	NA 312-36	130.0	81.0	59.0	76.5	29.5	47.0	36.0	88.0	M10x1.25 3/8-24	8330	5290	2.90
2-5/16	NA 312-37
60	NA 312
2-3/8	NA 312-38
2-7/16	NA 312-39
65	NA 312-650
2-11/16	NA 314-43	150.0	94.0	68.3	92.1	34.1	58.0	40.0	101.6	M12x1.25 7/16-20	10640	6940	4.50
2-3/4	NA 314-44
70	NA 314
2-15/16	NA 315-47	160.0	100.5	74.6	100.0	37.3	62.7	42.0	112.7	5/8-18	11570	7840	5.60
75	NA 315
3	NA 315-48
80	NA 316	170.0	108.0	81.0	106.4	40.5	65.9	44.0	119.0	M16x1.5 5/8-18	12540	8830	6.70
3-3/16	NA 316-51
3-1/2	NA 318-56	190.0	120.0	87.3	115.9	43.6	72.3	48.0	133.0	M20x1.5 3/4-16	14590	11020	9.85
3-7/16	NA 318-55
90	NA 318
3-1/2	NA 318-56S	190.0	120.0	77.5	101.0	35.5	65.5	48.0	133.0	M20x1.5 3/4-16	17510	14290	8.10
90	NA 318-S
95	NA319	200.0	126.5	97.3	122.3	46.8	83.4	50.0	140.0
3-3/4	NA319-60
100	NA 320	215.0	134.5	100.0	128.6	50.0	78.6	54.0	146.0	M20x1.5 3/4-16	17510	14290	13.00
3-15/16	NA 320-63
4	NA 320-64

Shaft diameter mm/in.	Bearing Type NO.	Dimensions (mm)								Set screw specifications (mm)	Load (Kgf)		weight (Kg)
d		D	d1	Bi	L	n	m	Be	W	(UNF)	Cr	Cor
7/8	NA 305-14	62.0	35.5	34.9	46.8	16.7	30.1	21.0	42.8	M8x1 5/16-24	2280	1770	0.45
15/16	NA 305-15
25	NA 305
1	NA 305-16
1-1/8	NA 306-18	72.0	44.5	36.5	50.0	17.5	32.5	24.0	49.2	M8x1 5/16-24	2760	1550	0.65
30	NA 306
1-3/16	NA 306-19
1-1/4	NA 307-20	80.0	49.0	38.1	51.6	18.3	33.3	25.0	55.5	M8x1 5/16-24	3420	1960	0.80
1-5/16	NA 307-21
35	NA 307
1-7/16	NA 307-23
1-1/2	NA 308-24	90.0	56.5	41.3	57.1	19.8	37.3	28.0	63.5	M10x1.25 3/8-24	4140	2450	1.10
1-9/16	NA 308-25
40	NA 308
1-5/8	NA 309-26	100.0	62.0	42.9	58.7	19.8	38.9	30.0	69.8	M10x1.25 3/8-24	5410	3250	1.50
1-11/16	NA 309-27
1-3/4	NA 309-28
45	NA 309
1-7/8	NA 310-30	110.0	69.0	49.2	66.6	24.6	42.0	32.0	76.2	M10x1.25 3/8-24	6300	3860	1.85
1-15/16	NA 310-31
50	NA 310
2	NA 311-32	120.0	75.0	55.6	73.0	27.8	45.2	34.0	82.5	M10x1.25 3/8-24	7300	4570	2.35
2-1/8	NA 311-34
55	NA 311
2-3/16	NA 311-35
2-1/4	NA 312-36	130.0	81.0	59.0	76.5	29.5	47.0	36.0	88.0	M10x1.25 3/8-24	8330	5290	2.90
2-5/16	NA 312-37
60	NA 312
2-3/8	NA 312-38
2-7/16	NA 312-39
65	NA 312-650
2-11/16	NA 314-43	150.0	94.0	68.3	92.1	34.1	58.0	40.0	101.6	M12x1.25 7/16-20	10640	6940	4.50
2-3/4	NA 314-44
70	NA 314
2-15/16	NA 315-47	160.0	100.5	74.6	100.0	37.3	62.7	42.0	112.7	5/8-18	11570	7840	5.60
75	NA 315
3	NA 315-48
80	NA 316	170.0	108.0	81.0	106.4	40.5	65.9	44.0	119.0	M16x1.5 5/8-18	12540	8830	6.70
3-3/16	NA 316-51
3-1/2	NA 318-56	190.0	120.0	87.3	115.9	43.6	72.3	48.0	133.0	M20x1.5 3/4-16	14590	11020	9.85
3-7/16	NA 318-55
90	NA 318
3-1/2	NA 318-56S	190.0	120.0	77.5	101.0	35.5	65.5	48.0	133.0	M20x1.5 3/4-16	17510	14290	8.10
90	NA 318-S
95	NA319	200.0	126.5	97.3	122.3	46.8	83.4	50.0	140.0
3-3/4	NA319-60
100	NA 320	215.0	134.5	100.0	128.6	50.0	78.6	54.0	146.0	M20x1.5 3/4-16	17510	14290	13.00
3-15/16	NA 320-63
4	NA 320-64
