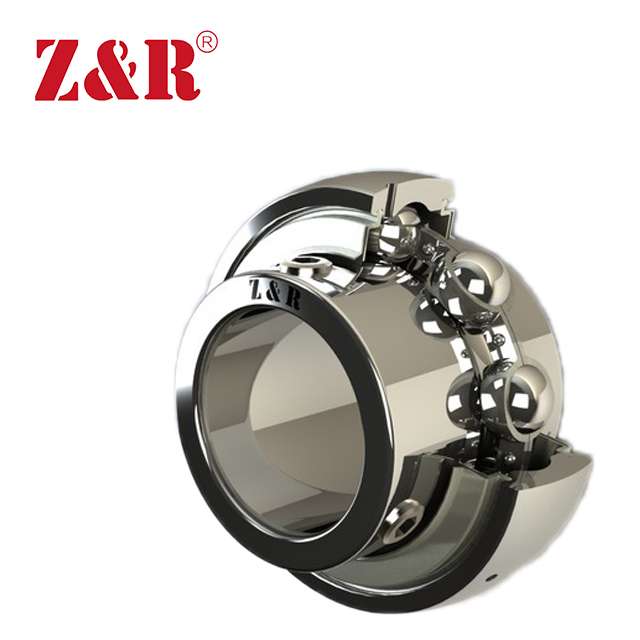

UC300

Availability:
Quantity:
Inquire Add to Basket

PDF Export






Shaft diameter

mm/in.

Bearing Type

NO.

Dimensions

(mm)

Set screw specifications

(mm)

Load

(Kgf)

weight
dDd1BinmBeG(UNF)CrCor(Kg)

7/8

UC 305-1462.035.538.015.023.021.06.0M6x1
1/4-28		228011700.35
15/16UC 305 -15
25UC 305
1UC 305-16

1-1/8

UC 306-1872.044.543.017.026.024.06.0M6x1
1/4-28		276015500.55
30UC 306

1-3/16

UC 306-19

1-1/4

UC 307-2080.049.048.019.029.025.08.0M8x1
5/16-24		342019600.80

1-5/16

UC 307-21

1-3/8

UC 307-22
35UC 307

1-7/16

UC 307-23

1-1/2

UC 308-2490.056.552.019.033.028.010.0M10x1.25
3/8-24		414024501.00

1-9/16

UC 308-25
40UC 308

1-5/8

UC 309-26100.062.057.022.035.030.010.0M10x1.25
3/8-24		541032501.30

1-11/16

UC 309-27

1-3/4

UC 309-28
45UC 309

1-7/8

UC 310-30110.069.061.022.039.032.012.0M12x1.25
7/16-20		630038601.70
1-15/16UC 310-31
50UC 310
2UC 310-32
2UC 311-32120.075.066.025.041.034.012.0M12x1.25
7/16-20		730045701.95

2-1/8

UC 311-34
55UC 311

2-3/16

UC 311-35

2-1/4

UC 312-36130.081.071.026.045.036.012.0M12x1.25
7/16-20		833052902.60
60UC 312

2-3/8

UC 312-38

2-7/16

UC 312-39

2-1/2

UC 313-40140.087.575.030.045.038.012.0M12x1.25
7/16-20		958061703.25
65UC 313

2-3/4

UC 314 -44150.094.078.031.047.040.012.0M12x1.251064069403.95
70UC 314
2-15/16UC 315-47160.0100.582.032.050.042.014.0M14x1.5
9/16-18		1157078404.55
75UC 315
3UC 315-48
80UC 316170.0108.086.034.052.044.014.0M14x1.51254088305.55

3-1/4

UC 317-52180.0114.096.040.056.046.016.0M16x1.51353098506.95
85UC 317

3-7/16

UC 318-55190.0120.096.040.056.048.016.0M16x1.514590110207.95

3-1/2

UC 318-56
90UC 318
95UC 319200.0126.5103.041.062.050.018.0M16x1.515920124508.90

3-3/4

UC 319-60
100UC 319-100
100UC 320215.0134.5108.042.066.054.018.0M18x1.5
3/4-16		175101429011.10

3-15/16

UC 320-63
4UC 320-64
110UC 322240.0151.7117.046.071.059.018.0M18x1.5209001820014.30
120UC 324260.0165.2126.051.075.063.018.0M18x1.5
3/4-16		211001880018.50
4-15/16UC 324 -79
130UC 326280.0178.3135.054.081.067.020.0M20x1.5233002180023.00
140UC 328300.0190.4145.059.086.072.020.0M20x1.523002180028.50
