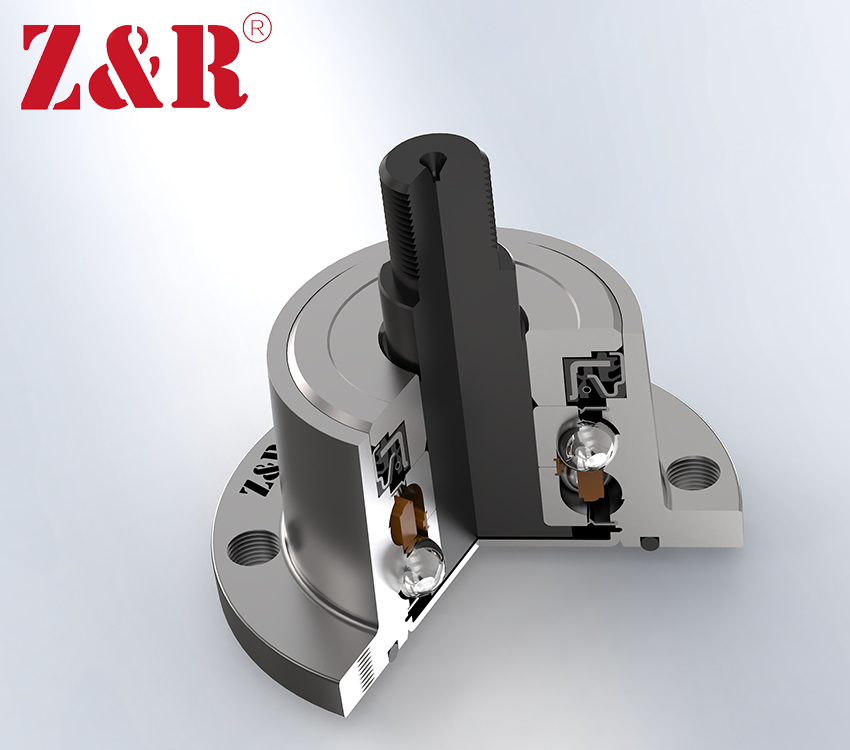

IL50-98/6T-M22

Availability:

IL50-98 6T-M22 -2

JPitch circle diameter98mm
DOutside diameter117mm
H/THole/Thread6xM12x1.25mm
dBore diameter27.95mm
CD-shape hole cut out dimension25.4mm
MOuther ThreadM22x1.5mm
LTotal length102mm
L1Total flange length60mm
ELength of D shape17mm
FLength of threaded part25mm
kgMass2.51kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.92kN
