Shaft diameter | Block bearing model | shapeDimensions (mm) | Bearingmodel | Block model | weight (kg) | |||||||||||||||
d | N1 | L2 | H2 | N2 | N | L3 | A1 | H1 | H | L | A | A2 | L1 | B | S | |||||
(min.) | (mm) | |||||||||||||||||||
1/2
5/8
11/16 3/4 | 12
15
17

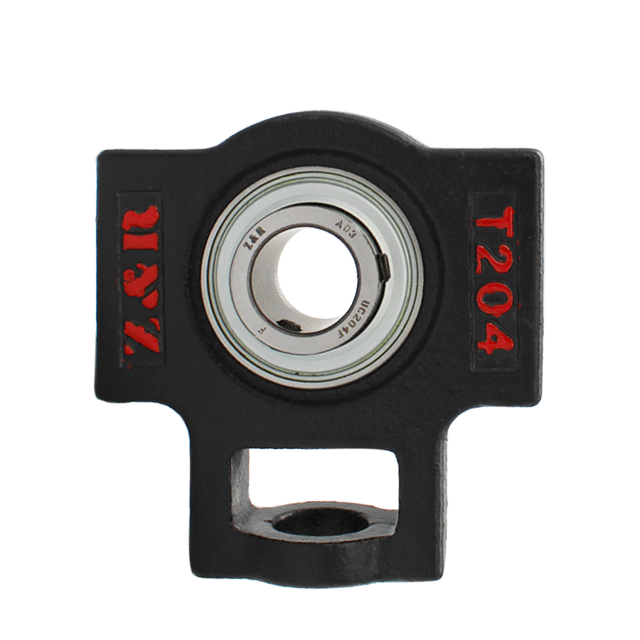

20 | UCST201 201-8 202 202-10 203 203-11 204-12 204 | 16 | 10 | 51 | 32 | 19 | 51 | 13,5 | 76 | 89 | 94 | 32 | 21 | 61 | 31 | 12,7 | UC201 201-8 202 202-10 203 203-11 204-12 204 | ST204 | 0,82 |
7/8 15/16
1 |
25 | UCST205-14 205-15 205 205-16 | 16 | 10 | 51 | 32 | 19 | 51 | 13,5 | 76 | 89 | 97 | 32 | 24 | 62 | 34 | 14,3 | UC205-14 205-15 205 205-16 | ST205 | 0,88 |
1-1/8
1-3/16 1-1/4 |
30 | UCST206-18 206 206-19 206-20 | 16 | 10 | 56 | 37 | 22 | 57 | 13,5 | 89 | 102 | 113 | 37 | 28 | 70 | 38,1 | 15,9 | UC206-18 206 206-19 206-20 | ST206 | 1,3 |
1-1/4 1-5/16 1-3/8
1-7/16 |
35 | UCST207-20 207-21 207-22 207 207-23 | 16 | 13 | 64 | 37 | 22 | 64 | 13,5 | 89 | 102 | 129 | 37 | 30 | 78 | 42,9 | 17,5 | UC207-20 207-21 207-22 207 207-23 | ST207 | 1,7 |
1-1/2 1-9/16 |
40 | UCST208-24 208-25 208 | 19 | 16 | 83 | 49 | 29 | 83 | 17,5 | 102 | 114 | 144 | 49 | 33 | 88 | 49,2 | 19 | UC208-24 208-25 208 | ST208 | 2,5 |
1-5/8 1-11/16 1-3/4 |
45 | UCST209-26 209-27 209-28 209 | 19 | 16 | 83 | 49 | 29 | 83 | 17,5 | 102 | 117 | 144 | 49 | 35 | 87 | 49,2 | 19 | UC209-26 209-27 209-28 209 | ST209 | 2,5 |
1-7/8 1-15/16 |
50 | UCST210-30 210-31 210 | 19 | 16 | 83 | 49 | 29 | 86 | 17,5 | 102 | 117 | 149 | 49 | 37 | 90 | 51,6 | 19 | UC210-30 210-31 210 | ST210 | 2,6 |
2 2-1/8
2-3/16 |
55 | UCST211-32 211-34 211 211-35 | 25 | 19 | 102 | 64 | 35 | 95 | 27 | 130 | 146 | 171 | 64 | 38 | 106 | 55,6 | 22,2 | UC211-32 211-34 211 211-35 | ST211 | 4,0 |
2-1/4
2-3/8 2-7/16 |
60 | UCST212-36 212 212-38 212-39 | 32 | 19 | 102 | 64 | 35 | 102 | 27 | 130 | 146 | 194 | 64 | 42 | 119 | 65,1 | 25,4 | UC212-36 212 212-38 212-39 | ST212 | 4,9 |
Shaft diameter | Block bearing model | shapeDimensions (mm) | Bearingmodel | Block model | weight (kg) | |||||||||||||||
d | N1 | L2 | H2 | N2 | N | L3 | A1 | H1 | H | L | A | A2 | L1 | B | S | |||||
(min.) | (mm) | |||||||||||||||||||
1/2
5/8
11/16 3/4 | 12
15
17
20 | UCST201 201-8 202 202-10 203 203-11 204-12 204 | 16 | 10 | 51 | 32 | 19 | 51 | 13,5 | 76 | 89 | 94 | 32 | 21 | 61 | 31 | 12,7 | UC201 201-8 202 202-10 203 203-11 204-12 204 | ST204 | 0,82 |
7/8 15/16
1 |
25 | UCST205-14 205-15 205 205-16 | 16 | 10 | 51 | 32 | 19 | 51 | 13,5 | 76 | 89 | 97 | 32 | 24 | 62 | 34 | 14,3 | UC205-14 205-15 205 205-16 | ST205 | 0,88 |
1-1/8
1-3/16 1-1/4 |
30 | UCST206-18 206 206-19 206-20 | 16 | 10 | 56 | 37 | 22 | 57 | 13,5 | 89 | 102 | 113 | 37 | 28 | 70 | 38,1 | 15,9 | UC206-18 206 206-19 206-20 | ST206 | 1,3 |
1-1/4 1-5/16 1-3/8
1-7/16 |
35 | UCST207-20 207-21 207-22 207 207-23 | 16 | 13 | 64 | 37 | 22 | 64 | 13,5 | 89 | 102 | 129 | 37 | 30 | 78 | 42,9 | 17,5 | UC207-20 207-21 207-22 207 207-23 | ST207 | 1,7 |
1-1/2 1-9/16 |
40 | UCST208-24 208-25 208 | 19 | 16 | 83 | 49 | 29 | 83 | 17,5 | 102 | 114 | 144 | 49 | 33 | 88 | 49,2 | 19 | UC208-24 208-25 208 | ST208 | 2,5 |
1-5/8 1-11/16 1-3/4 |
45 | UCST209-26 209-27 209-28 209 | 19 | 16 | 83 | 49 | 29 | 83 | 17,5 | 102 | 117 | 144 | 49 | 35 | 87 | 49,2 | 19 | UC209-26 209-27 209-28 209 | ST209 | 2,5 |
1-7/8 1-15/16 |
50 | UCST210-30 210-31 210 | 19 | 16 | 83 | 49 | 29 | 86 | 17,5 | 102 | 117 | 149 | 49 | 37 | 90 | 51,6 | 19 | UC210-30 210-31 210 | ST210 | 2,6 |
2 2-1/8
2-3/16 |
55 | UCST211-32 211-34 211 211-35 | 25 | 19 | 102 | 64 | 35 | 95 | 27 | 130 | 146 | 171 | 64 | 38 | 106 | 55,6 | 22,2 | UC211-32 211-34 211 211-35 | ST211 | 4,0 |
2-1/4
2-3/8 2-7/16 |
60 | UCST212-36 212 212-38 212-39 | 32 | 19 | 102 | 64 | 35 | 102 | 27 | 130 | 146 | 194 | 64 | 42 | 119 | 65,1 | 25,4 | UC212-36 212 212-38 212-39 | ST212 | 4,9 |
