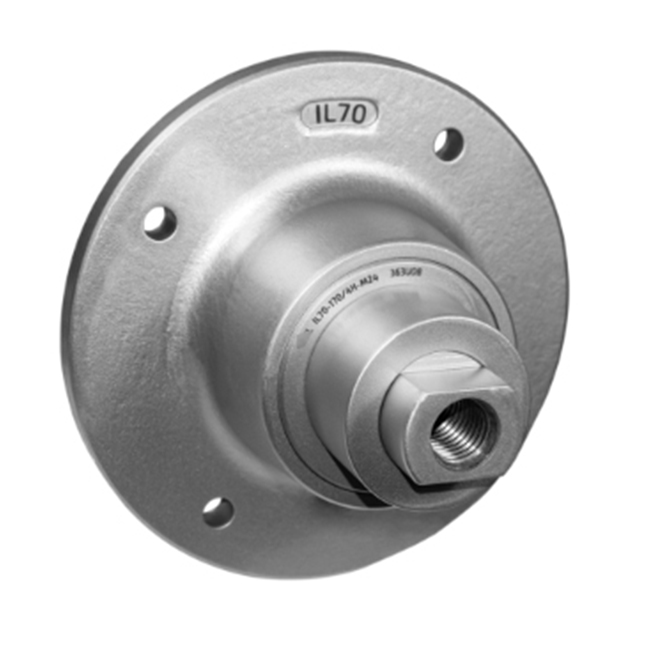

IL70-170/4H-M24

Availability:

IL70-170 4H-M24 -2

JPitch circle diameter170mm
DOutside diameter212mm
H/THole/Thread4x13mm
dBore diameter45mm
CD-shape hole cut out dimension32mm
GInternal ThreadM24mm
LTotal length125mm
L1Total flange length71mm
ELength of D shape18mm
FLength of threaded part75mm
kgMass8.128kg
CdynDynamic load rating94.45kN
CoStatic load rating77.88kN
PuFatigue load limit3.271kN
