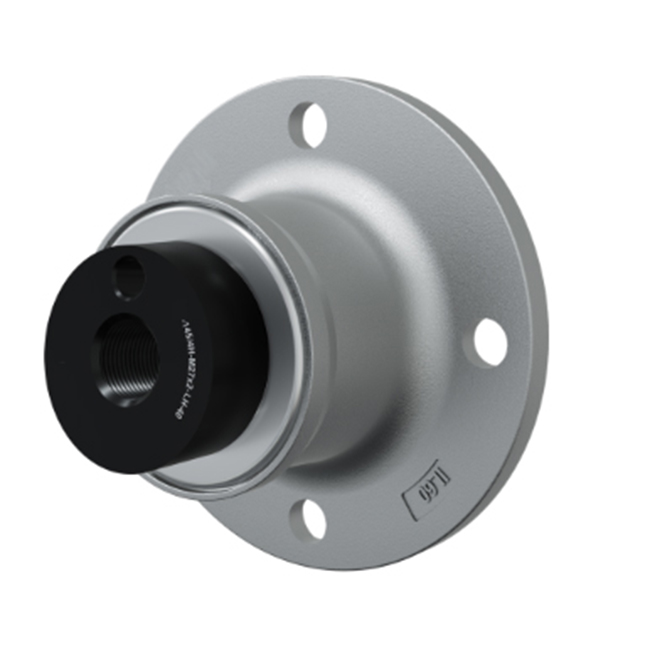

IL60-145/4H-M27x2-RH-40

Availability:
Quantity:

PDF Export

IL60-145 4H-M27x2-RH-40 -2

JPitch circle diameter145mm
DOutside diameter180mm
H/THole/Thread4x17mm
GInternal ThreadM27x2-7H rightmm
LTotal length108mm
L1Total flange length66mm
FLength of threaded part30mm
αMass5.52kg
Contact angle5°
CdynDynamic load rating66.35kN
CoStatic load rating56.49kN
PuFatigue load limit2.373kN
