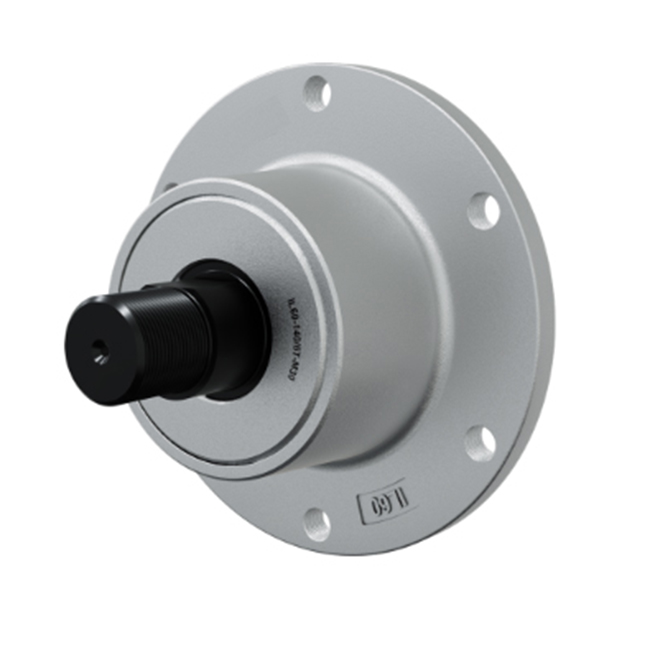

IL60-140/6T-M30

Availability:
Quantity:

PDF Export

IL60-140 6T-M30 -2

JPitch circle diameter140mm
DOutside diameter160mm
H/THole/Thread6xM12x1.25mm
dBore diameter35mm
CD-shape hole cut out dimension32.5mm
MOuther ThreadM30x1.5mm
LTotal length110.5mm
L1Total flange length63mm
ELength of D shape19.5mm
FLength of threaded part28mm
kgMass3.97kg
CdynDynamic load rating75.86kN
CoStatic load rating66.2kN
PuFatigue load limit2.78kN
