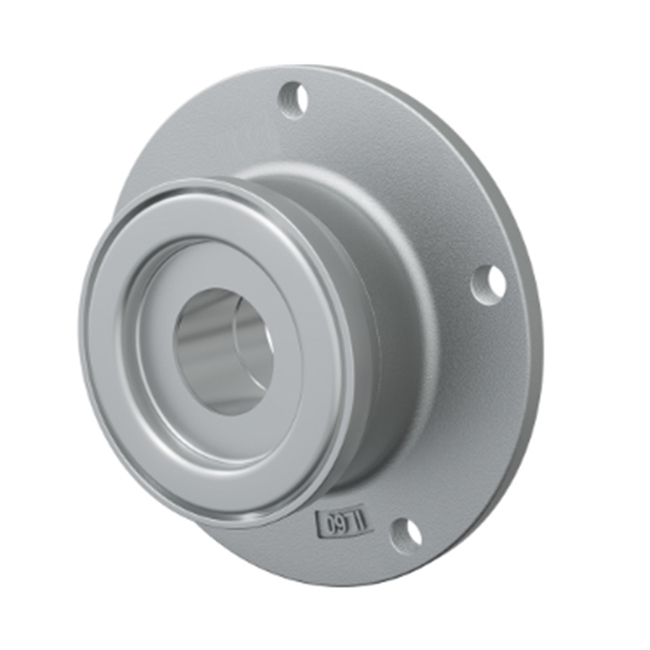

IL60-140/5T-B37

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL60-140 5T-B37 -2

JPitch circle diameter140mm
DOutside diameter160mm
H/THole/Thread5xM12x1.25mm
d1Bore diameter37mm
LTotal length53.4mm
L2Bearing width45mm
CdynDynamic load rating66.35kN
CoStatic load rating56.49kN
PuFatigue load limit2.37kN
