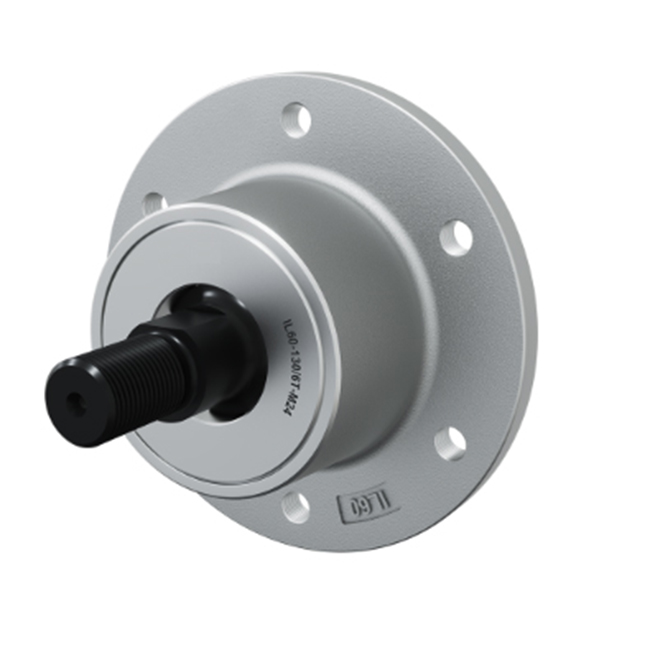

IL60-130/6T-M30-112-03

Availability:
Quantity:

PDF Export

IL60-130 6T-M30-112-03 -2

JPitch circle diameter130mm
DOutside diameter160mm
H/THole/Thread6xM12x1.25mm
dBore diameter40mm
CD-shape hole cut out dimension37mm
MOuther ThreadM30x1.5mm
LTotal length112mm
L1Total flange length63mm
ELength of D shape20mm
FLength of threaded part29mm
kgMass4.4kg
CdynDynamic load rating66.35kN
CoStatic load rating56.5kN
PuFatigue load limit2.37kN
