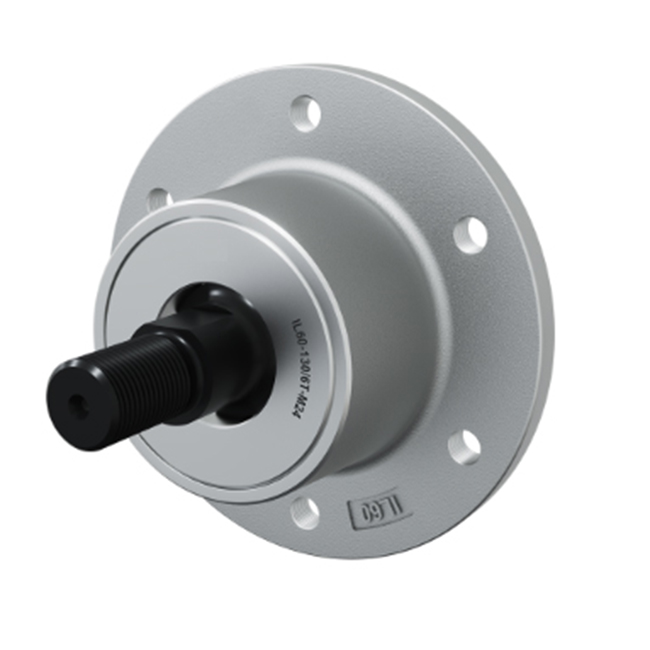

IL60-130/6T-M27x2-122.5

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL60-130 6T-M27x2-122.5 -2

JPitch circle diameter130mm
DOutside diameter160mm
H/THole/Thread6xM12x1.25mm
dBore diameter36mm
CD-shape hole cut out dimension33.5mm
MOuther ThreadM27x2mm
LTotal length122.5mm
L1Total flange length63mm
ELength of D shape22mm
FLength of threaded part37.5mm
kgMass4.45kg
CdynDynamic load rating66.35kN
CoStatic load rating56.5kN
PuFatigue load limit2.37kN
