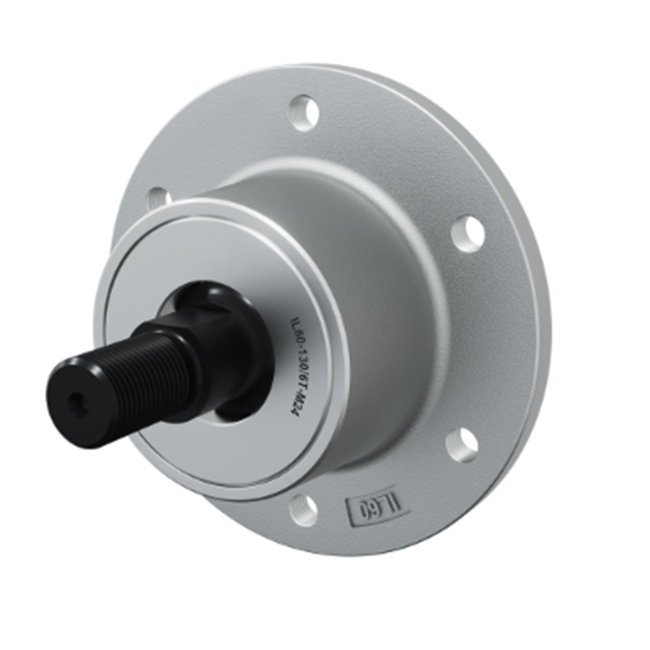

IL60-130/6T-M24

Availability:
Quantity:

PDF Export

IL60-130 6T-M24 -2

JPitch circle diameter130mm
DOutside diameter160mm
H/THole/Thread6xM12x1.25mm
dBore diameter30mm
CD-shape hole cut out dimension28mm
MOuther ThreadM24x2mm
LTotal length121mm
L1Total flange length63mm
ELength of D shape24.5mm
FLength of threaded part33.5mm
kgMass4.4kg
CdynDynamic load rating66.35kN
CoStatic load rating56.5kN
PuFatigue load limit2.37kN
