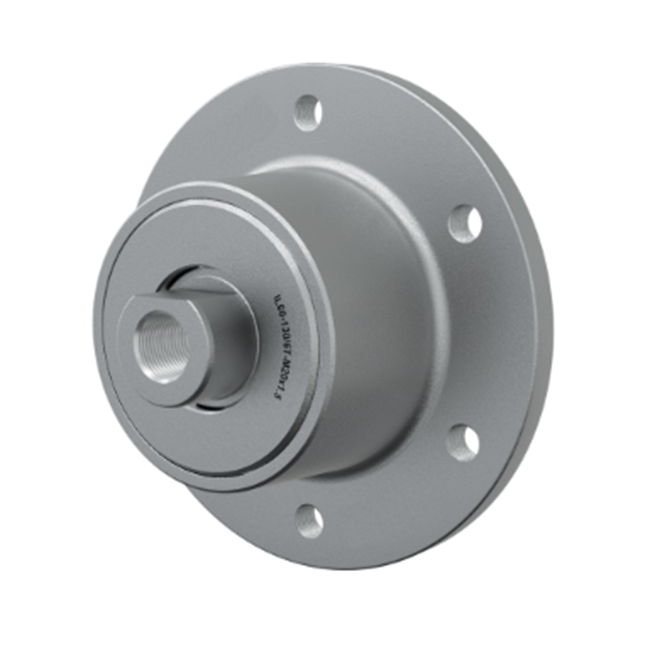

IL60-130/6T-M20x1.5

Availability:
Quantity:

PDF Export

IL60-130 6T-M20x1.5 -2

JPitch circle diameter130mm
DOutside diameter160mm
H/THole/Thread6xM12x1.25mm
dBore diameter31mm
CD-shape hole cut out dimension34.9mm
GInternal ThreadM20x1.5mm
LTotal length82mm
L1Total flange length63mm
FLength of threaded part40mm
ELength of D shape19mm
kgMass3.72kg
CdynDynamic load rating75.86kN
CoStatic load rating66.2kN
PuFatigue load limit2.78kN
