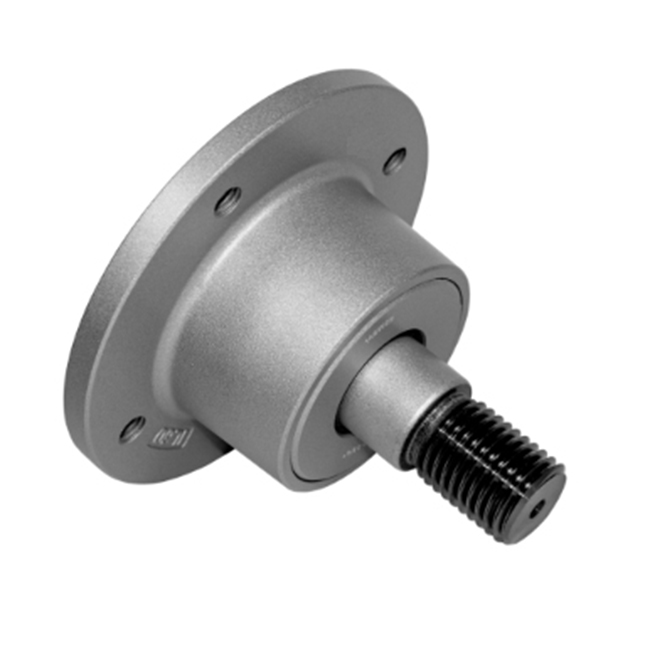

IL60-127/4T-1-1/4"

Availability:
Quantity:

PDF Export

IL60-127 4T-1-1 4 -2

J Pitch circle diameter 127 mm
D Outside diameter 160 mm
H/T Hole/Thread 4x1/2-13 UNC mm
d Bore diameter 36 mm
C D-shape hole cut out dimension 34 mm
M Outher Thread 1 1/4"-7 UNC mm
L Total length 129.5 mm
L1 Total flange length 63 mm
E Length of D shape 24 mm
F Length of threaded part 42.5 mm
kg Mass 4.078 kg
Cdyn Dynamic load rating 75.86 kN
Co Static load rating 66.2 kN
Pu Fatigue load limit 2.78 kN
