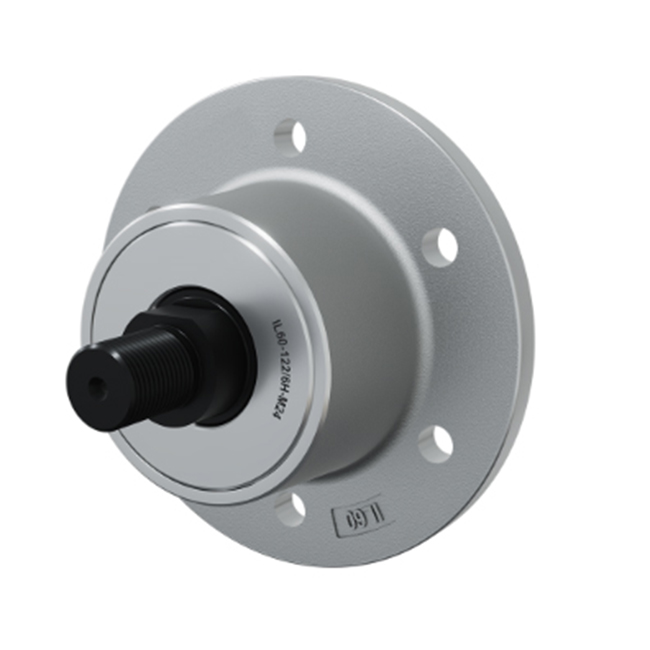

IL60-122/6H-M24

Availability:
Quantity:

PDF Export

IL60-122 6H-M24 -2

JPitch circle diameter122mm
DOutside diameter160mm
H/THole/Thread6x12mm
dBore diameter35mm
CD-shape hole cut out dimension32.5mm
MOuther ThreadM24x2mm
LTotal length106.5mm
L1Total flange length63mm
ELength of D shape16.5mm
FLength of threaded part27mm
kgMass4.2kg
CdynDynamic load rating66.35kN
CoStatic load rating56.5kN
PuFatigue load limit2.37kN
