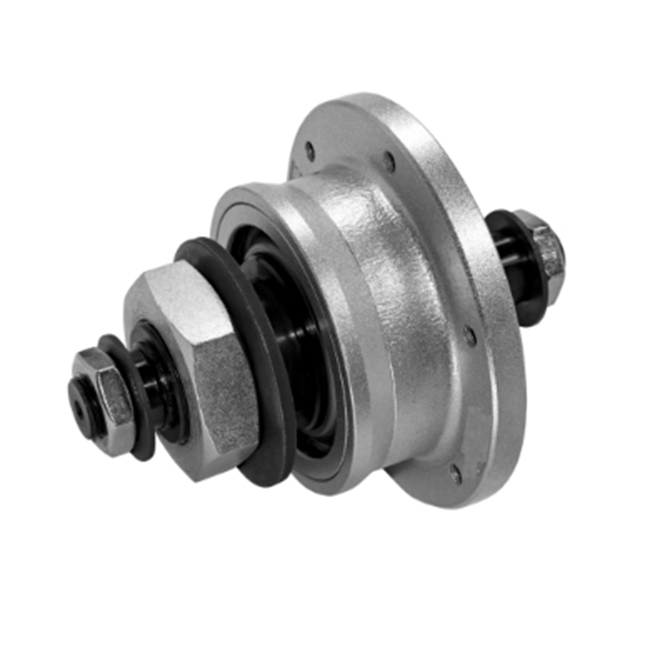

IL60-115/6T-M20

Availability:
Quantity:

PDF Export

IL60-115 6T-M20 -2

JPitch circle diameter115mm
DOutside diameter135mm
H/THole/Thread6xM8mm
dBore diameter42mm
CD-shape hole cut out dimension39.5mm
MOuther ThreadM39x1.5mm
FLength of threaded part26mm
LTotal length167mm
L1Total flange length48mm
ELength of D shape15mm
kgMass4.214kg
CdynDynamic load rating66.35kN
CoStatic load rating56.49kN
PuFatigue load limit2.37kN
