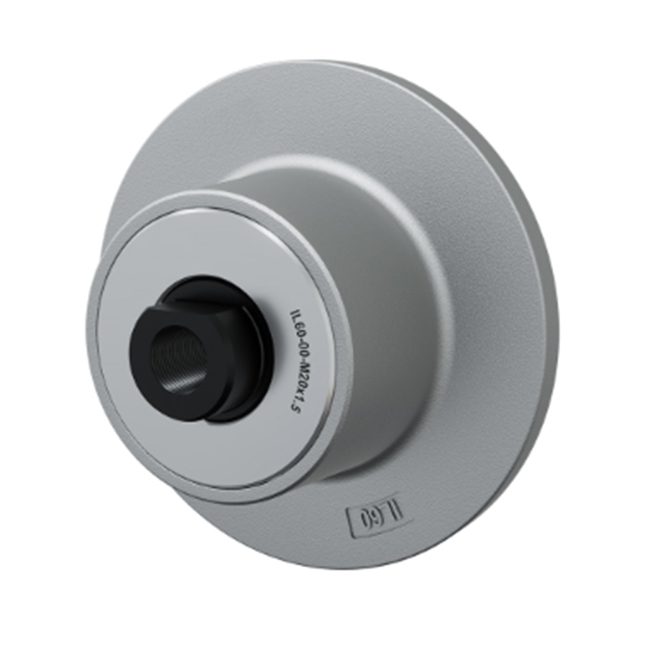

IL60-00-M20X1.5

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL60-00-M20X1.5 -2

DOutside diameter160mm
H/THole/Threadblankmm
dBore diameter31mm
CD-shape hole cut out dimension34.9mm
GInternal ThreadM20X1.5mm
LTotal length78mm
L1Total flange length63mm
FLength of threaded part40mm
kgMass4.2kg
CdynDynamic load rating66.35kN
CoStatic load rating56.5kN
PuFatigue load limit2.37kN


Previous:
Next:
Agricultural machinery bearings IL60
