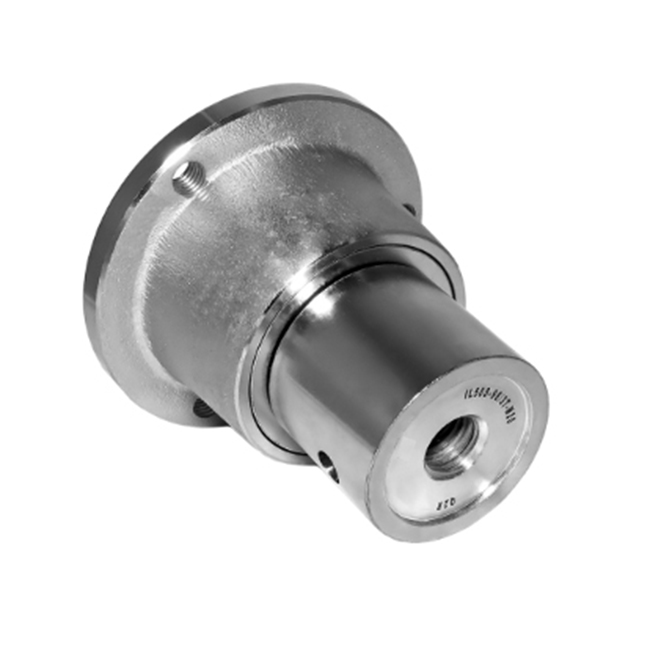

IL50S-98/3T-M20

Availability:

IL50S-98 3T-M20 -2

JPitch circle diameter98mm
DOutside diameter117mm
D1Outside diameter60mm
H/THole/ThreadM12mm
GInternal ThreadM20mm
LTotal length111mm
L1Total flange length59.8mm
L2Bearing width20mm
FLength of threaded part32mm
kgMass3.3kg
CdynDynamic load rating48.76kN
CoStatic load rating35.5kN
PuFatigue load limit1.49kN
