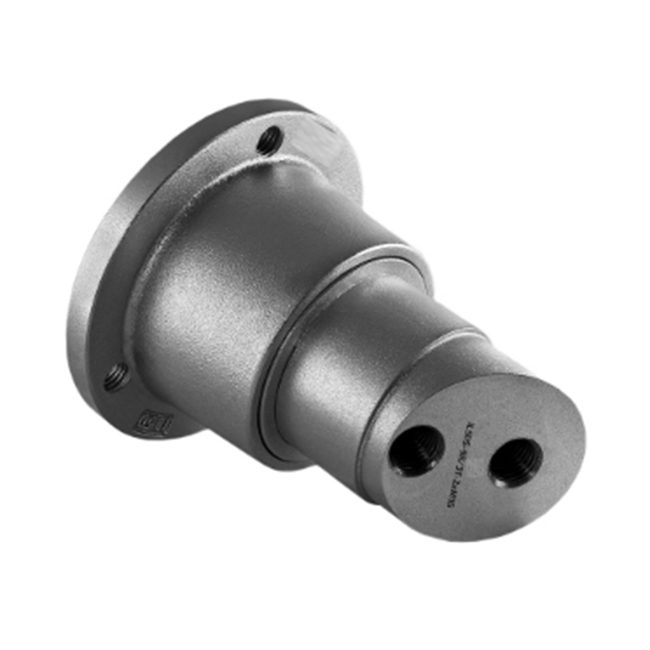

IL50S-98/3T-2xM16

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL50S-98 3T-2xM16 -2

JPitch circle diameter98mm
DOutside diameter117mm
D1Outside diameter56mm
H/THole/ThreadM12mm
GInternal Thread2xM16mm
LTotal length130mm
L1Total flange length59.8mm
L2Bearing width37mm
FLength of threaded part23mm
kgMass3.4kg
CdynDynamic load rating48.76kN
CoStatic load rating35.5kN
PuFatigue load limit1.49kN
