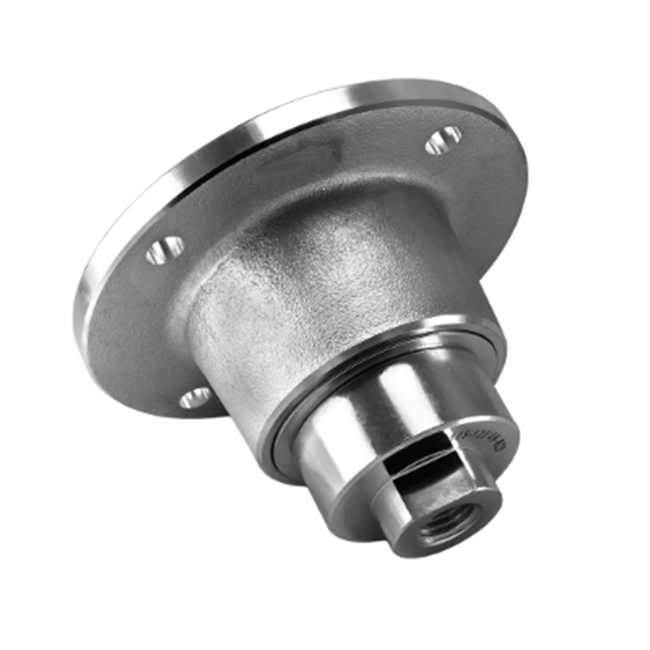

IL50S-120/4H-M20

Availability:
Quantity:

PDF Export

IL50S-120 4H-M20 -2

JPitch circle diameter120mm
DOutside diameter145mm
D1Outside diameter60mm
H/THole/Threado11mm
GInternal ThreadM20mm
LTotal length100mm
L1Total flange length60.8mm
L2Bearing width14mm
FLength of threaded part55mm
kgMass3.973kg
CdynDynamic load rating48.76kN
CoStatic load rating35.5kN
PuFatigue load limit1.49kN
