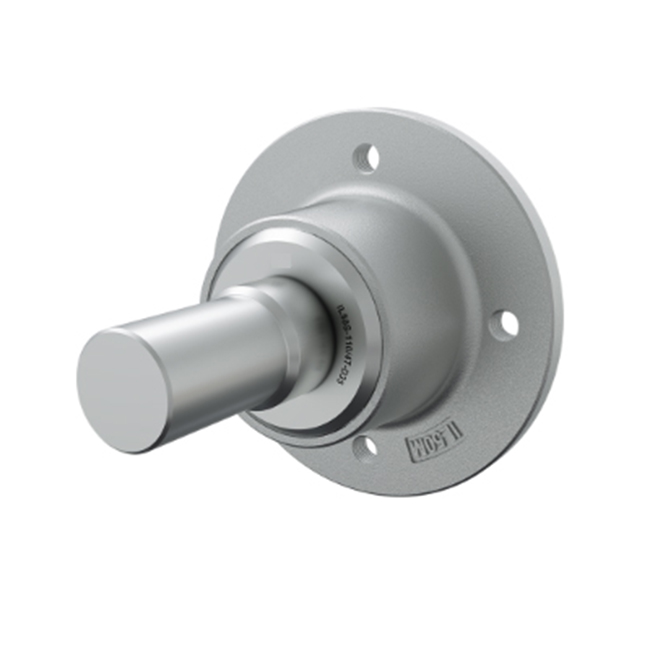

IL50S-110 4T-D35 -2

JPitch circle diameter110mm
DOutside diameter145mm
D1Outside diameter35mm
MOuther Thread35mm
LTotal length140mm
L1Total flange length63mm
ELength of D shape23mm
FLength of threaded part54mm
CdynDynamic load rating48.76kN
CoStatic load rating35.5kN
PuFatigue load limit1.49kN
