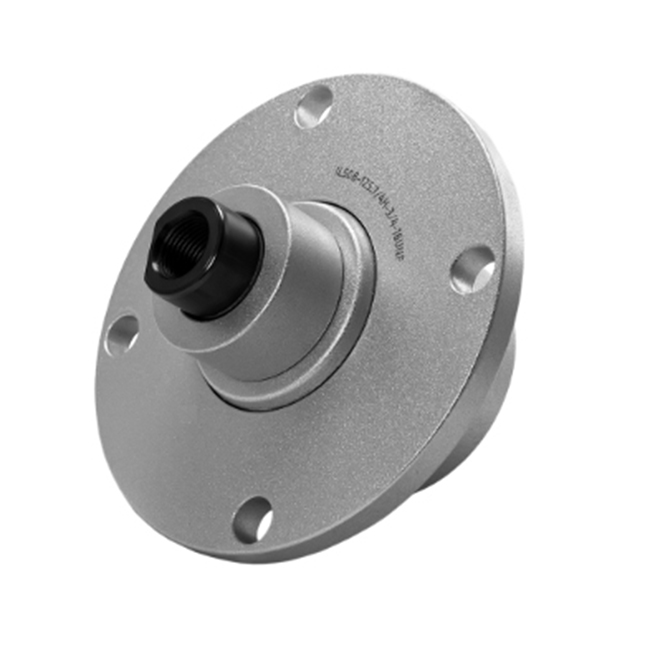

IL50B-125.7/4H-3/4-16UNF

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL50B-125.7 4H-3 4-16UNF -2

JPitch circle diameter125.7mm
DOutside diameter145mm
H/THole/Threado13.5mm
dBore diameter29.75mm
CD-shape hole cut out dimension26.1mm
GInternal Thread3/4”–16UNFmm
LTotal length99.6mm
L1Total flange length57mm
L2The distance from the mounting surface to the front of the flange on which the disc is installed38mm
ELength of D shape14.6mm
FLength of threaded part40mm
kgMass3.245kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.92kN
