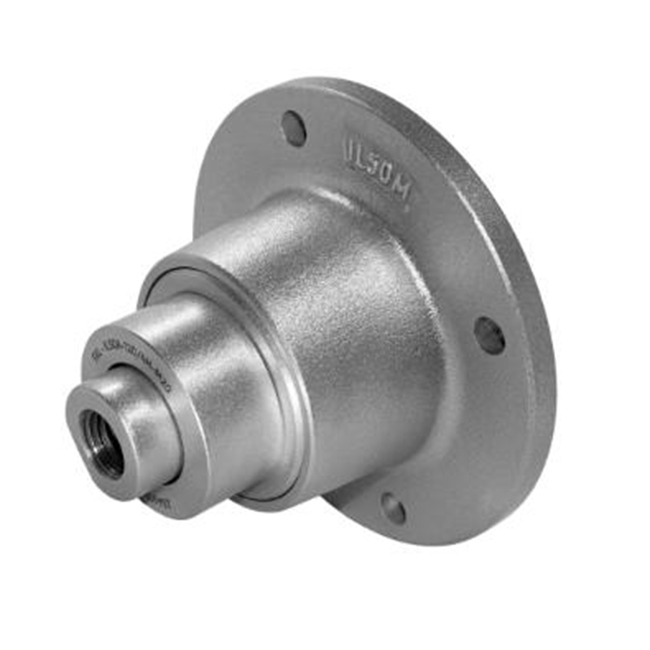

IL50A-120/4H-M20

Availability:
Quantity:

PDF Export

IL50A-120 4H-M20 -2

JPitch circle diameter120mm
DOutside diameter145mm
H/THole/Thread4x11mm
dBore diameter34mm
CD-shape hole cut out dimension31mm
GThreadM20mm
LTotal length100mm
L1Total flange length60mm
ELength of D shape14mm
FLength of threaded part55mm
kgMass3.23kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.92kN
