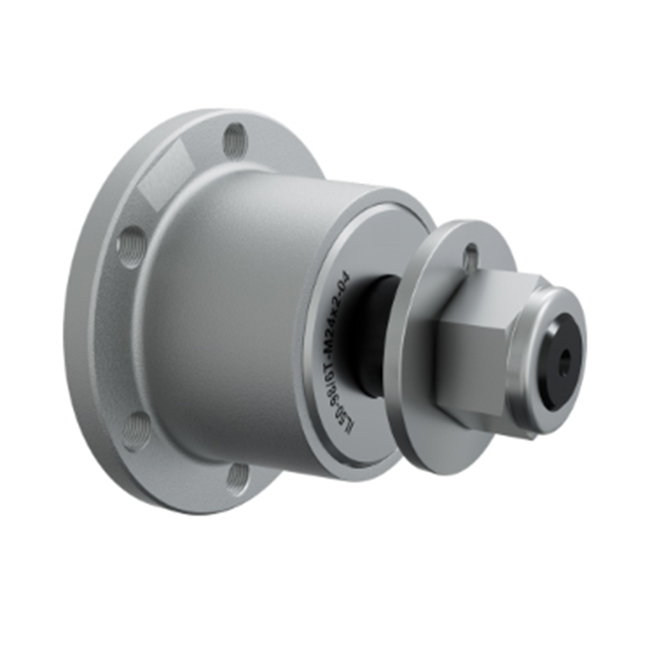

J | Pitch circle diameter | 98 | mm |
D | Outside diameter | 117 | mm |
H/T | Hole/Thread | 6xM12x1.75 | mm |
d | Bore diameter | 32 | mm |
C | D-shape hole cut out dimension | 29.6 | mm |
M | Outher Thread | M24x2 | mm |
L | Total length | 111 | mm |
L1 | Total flange length | 60 | mm |
E | Length of D shape | 20 | mm |
F | Length of threaded part | 27 | mm |
kg | Mass | 2.83 | kg |
Cdyn | Dynamic load rating | 60 | kN |
Co | Static load rating | 45.8 | kN |
Pu | Fatigue load limit | 1.92 | kN |
J | Pitch circle diameter | 98 | mm |
D | Outside diameter | 117 | mm |
H/T | Hole/Thread | 6xM12x1.75 | mm |
d | Bore diameter | 32 | mm |
C | D-shape hole cut out dimension | 29.6 | mm |
M | Outher Thread | M24x2 | mm |
L | Total length | 111 | mm |
L1 | Total flange length | 60 | mm |
E | Length of D shape | 20 | mm |
F | Length of threaded part | 27 | mm |
kg | Mass | 2.83 | kg |
Cdyn | Dynamic load rating | 60 | kN |
Co | Static load rating | 45.8 | kN |
Pu | Fatigue load limit | 1.92 | kN |
