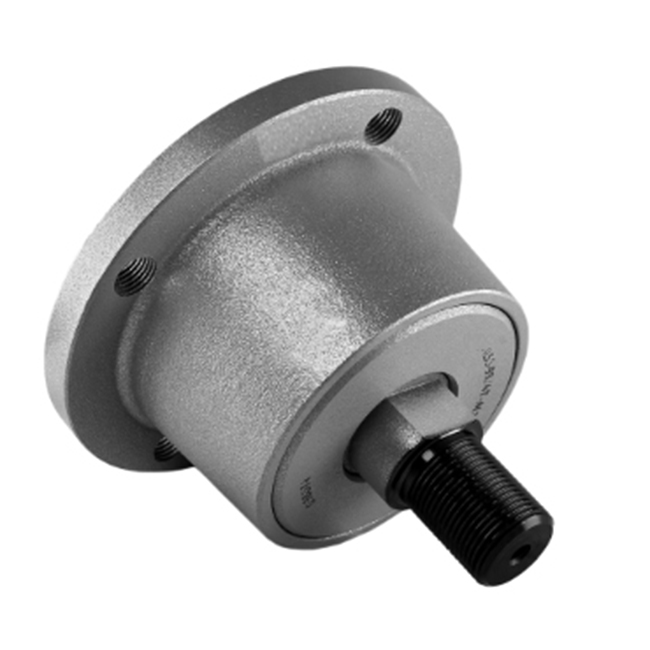

J | Pitch circle diameter | 98 | mm |
D | Outside diameter | 117 | mm |
H/T | Hole/Thread | 4xM12x1.25 | mm |
d | Bore diameter | 27.95 | mm |
C | D-shape hole cut out dimension | 25.4 | mm |
M | Outher Thread | M22x1.5 | mm |
L | Total length | 102 | mm |
L1 | Total flange length | 60 | mm |
E | Length of D shape | 17 | mm |
F | Length of threaded part | 25 | mm |
kg | Mass | 2.51 | kg |
Cdyn | Dynamic load rating | 60 | kN |
Co | Static load rating | 45.8 | kN |
Pu | Fatigue load limit | 1.92 | kN |
J | Pitch circle diameter | 98 | mm |
D | Outside diameter | 117 | mm |
H/T | Hole/Thread | 4xM12x1.25 | mm |
d | Bore diameter | 27.95 | mm |
C | D-shape hole cut out dimension | 25.4 | mm |
M | Outher Thread | M22x1.5 | mm |
L | Total length | 102 | mm |
L1 | Total flange length | 60 | mm |
E | Length of D shape | 17 | mm |
F | Length of threaded part | 25 | mm |
kg | Mass | 2.51 | kg |
Cdyn | Dynamic load rating | 60 | kN |
Co | Static load rating | 45.8 | kN |
Pu | Fatigue load limit | 1.92 | kN |
