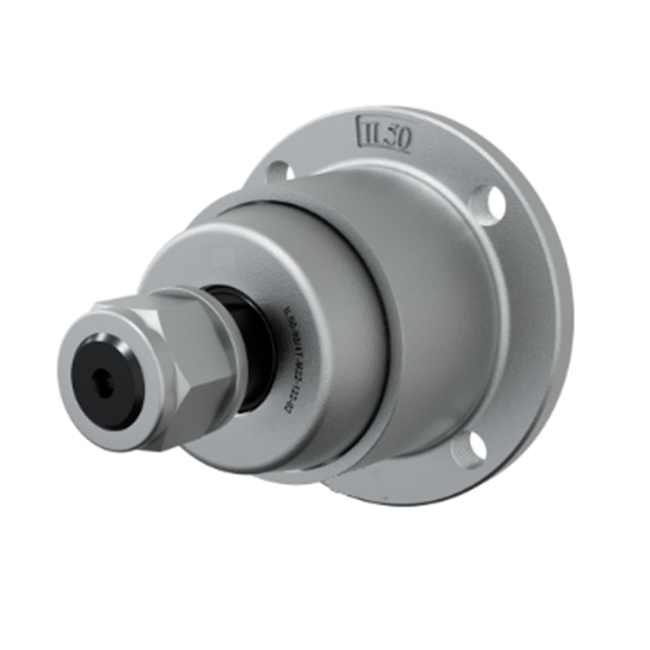

IL50-98/4T-M22-122-02

Availability:
Quantity:

PDF Export

IL50-98 4T-M22-122-02 -2

JPitch circle diameter98mm
DOutside diameter117mm
H/THole/Thread4xM12x1.25mm
dBore diameter27.95mm
CD-shape hole cut out dimension25.4mm
MOuther ThreadM22x1.5mm
LTotal length122mm
L1Total flange length80mm
ELength of D shape17mm
FLength of threaded part25mm
kgMass3.15kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.92kN
