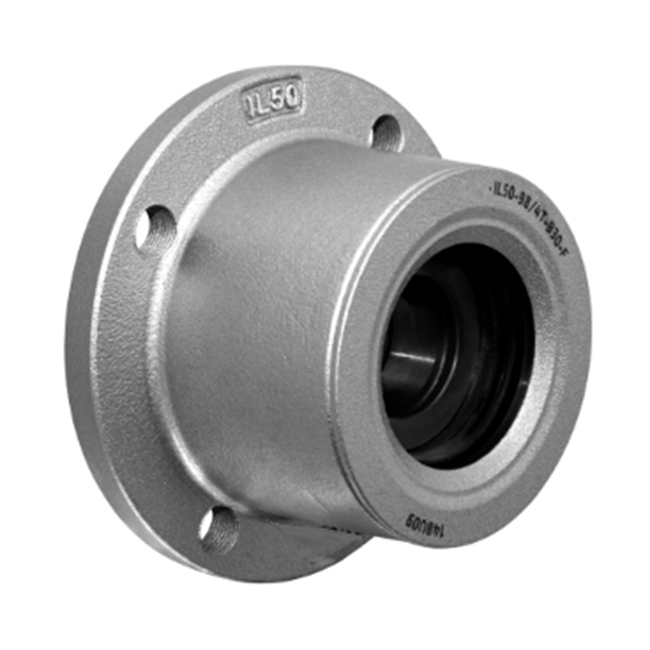

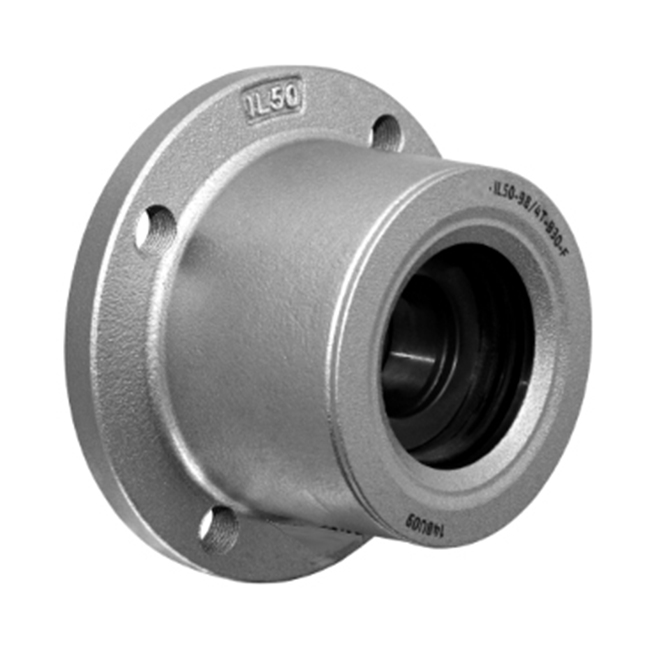

IL50-98/4T-B30-F

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL50-98 4T-B30-F -2

JPitch circle diameter98mm
DOutside diameter117mm
H/THole/Thread4xM12x1.25mm
d1Bore diameter30mm
d2Mounting diameter45mm
L1Total flange length61mm
kgMass1.87kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.92kN
