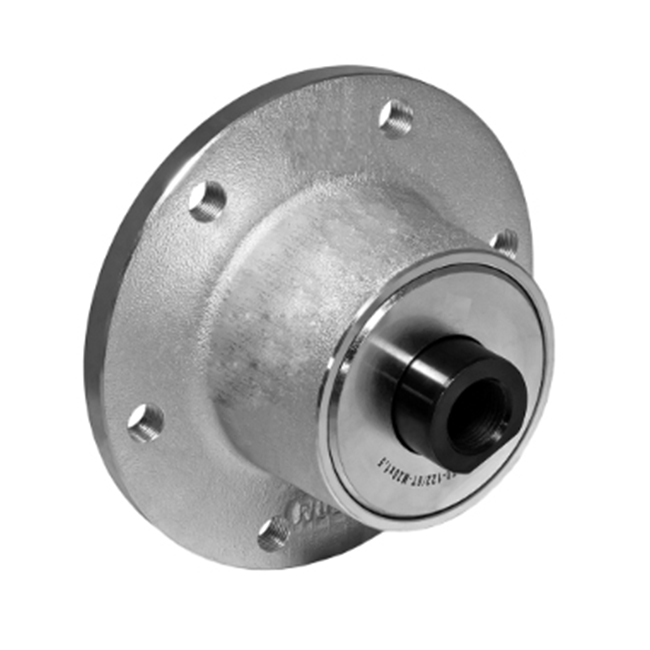

IL50-122/6T-M20x1.5

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL50-122 6T-M20x1.5 -2

JPitch circle diameter122mm
DOutside diameter145mm
H/THole/Thread6xM12x1.25mm
dBore diameter31.8mm
CD-shape hole cut out dimension29mm
GInternal ThreadM20x1.5mm
LTotal length75mm
L1Total flange length60mm
ELength of D shape15mm
FLength of threaded part26mm
kgMass2.99kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.92kN
