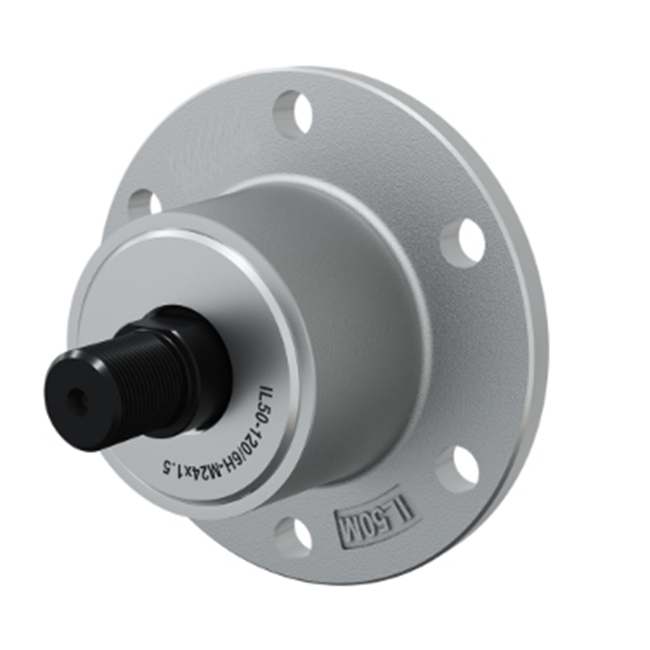

IL50-120/6H-M24x1.5

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL50-120 6H-M24x1.5 -2

JPitch circle diameter120mm
DOutside diameter145mm
H/THole/Thread6x13mm
dBore diameter30mm
CD-shape hole cut out dimension27mm
MOuther ThreadM24x1.5mm
LTotal length97.5mm
L1Total flange length60mm
ELength of D shape15.5mm
FLength of threaded part22mm
kgMass2.96kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.92kN
