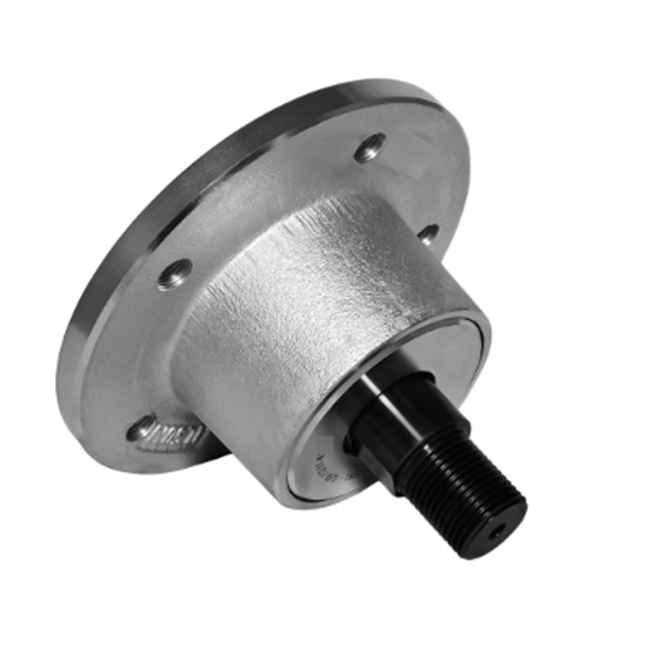

IL50-112/5T-M24x2

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL50-112 5T-M24x2 -2

JPitch circle diameter112mm
DOutside diameter145mm
H/THole/Thread5xM12x1.25mm
dBore diameter30mm
CD-shape hole cut out dimension28mm
MOuther ThreadM24x2mm
LTotal length106mm
L1Total flange length60mm
ELength of D shape20mm
FLength of threaded part26mm
kgMass3.02kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.92kN
