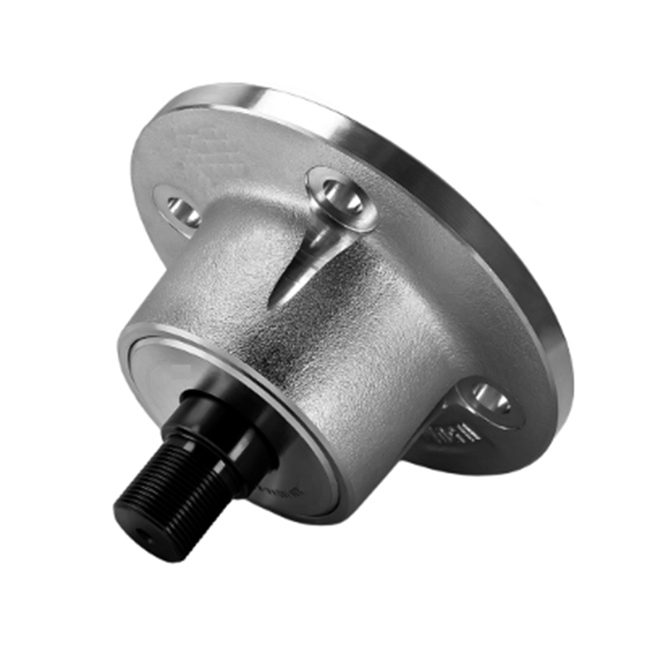

IL50-105/4H-M24x1.5-RH

Availability:
Quantity:

PDF Export

IL50-105 4H-M24x1.5-LH -2

JPitch circle diameter105mm
DOutside diameter145mm
H/THole/Thread4x12.3mm
dBore diameter30mm
CD-shape hole cut out dimension27mm
MOuther ThreadM24x1.5-RHmm
LTotal length97.5mm
L1Total flange length60mm
ELength of D shape15.5mm
FLength of threaded part22mm
kgMass3.1kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.92kN
