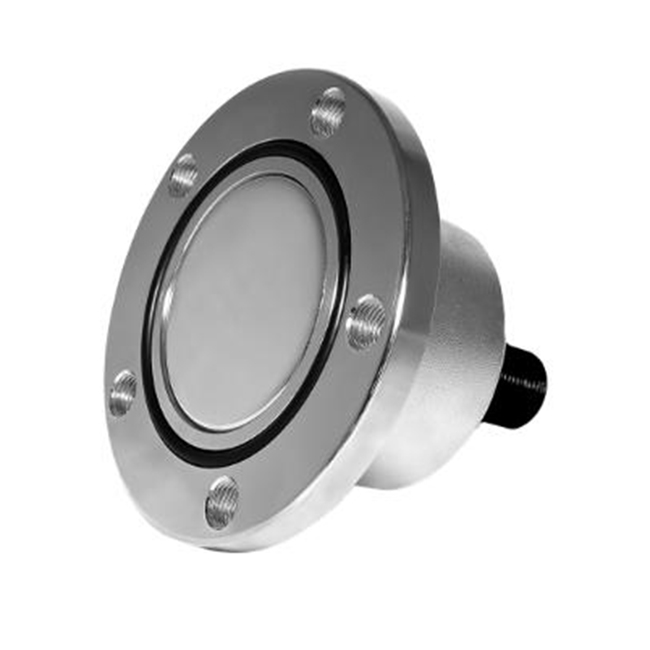

IL40-98/5T-M22

Availability:
Quantity:

PDF Export

IL40-98 5T-M22 -2

JPitch circle diameter98mm
DOutside diameter117mm
H/THole/Thread5xM12x1.25mm
dBore diameter27.95mm
CD-shape hole cut out dimension25.4mm
MOuther ThreadM22x1.5mm
LTotal length102mm
L1Total flange length60mm
ELength of D shape17mm
FLength of threaded part25mm
kgMass2.16kg
CdynDynamic load rating42.9kN
CoStatic load rating36.3kN
PuFatigue load limit1.53kN
