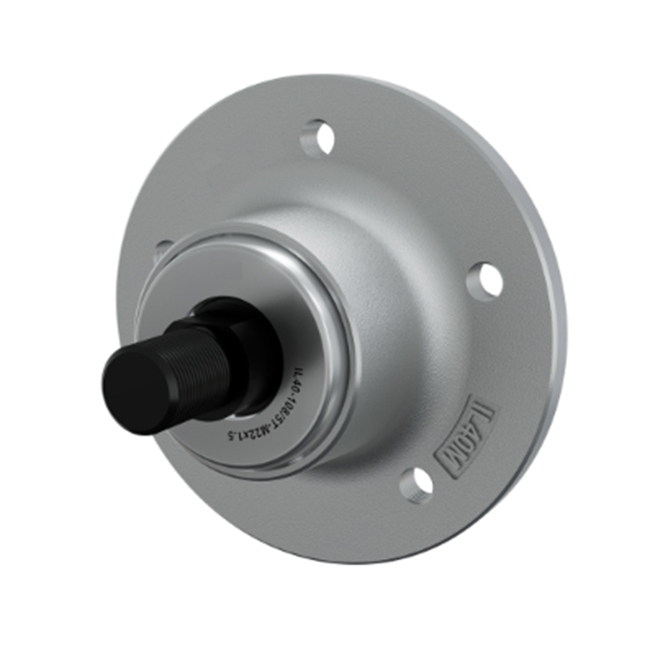

IL40-120/4H-M22x1.5

Availability:

IL40-120 4H-M22x1.5

JPitch circle diameter120mm
DOutside diameter145mm
H/THole/Thread4x11mm
dBore diameter28mm
CD-shape hole cut out dimension25.4mm
MOuther ThreadM22x1.5mm
LTotal length110mm
L1Total flange length60mm
ELength of D shape17mm
FLength of threaded part33mm
kgMass2.79kg
CdynDynamic load rating42.9kN
CoStatic load rating36.3kN
PuFatigue load limit1.53kN
