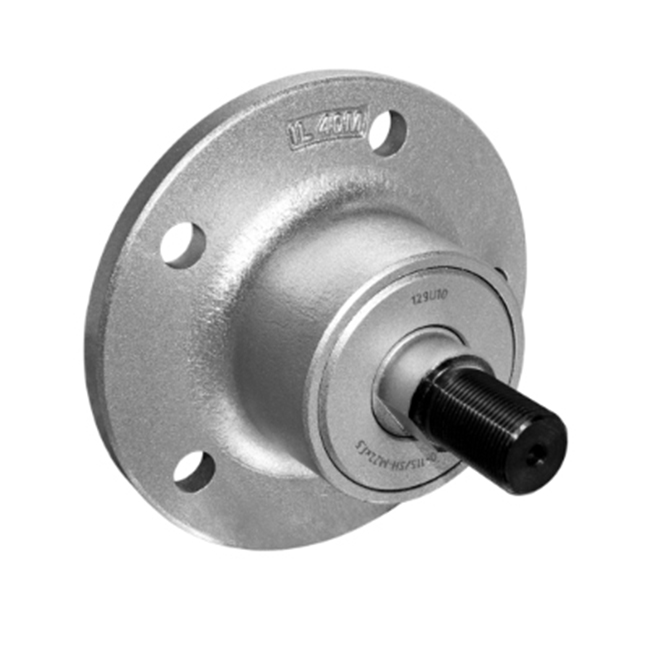

IL40-115/5H-M22x1.5

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL40-115 5H-M22x1.5 -2

JPitch circle diameter115mm
DOutside diameter145mm
H/THole/Thread5x13mm
dBore diameter28mm
CD-shape hole cut out dimension25.5mm
MOuther ThreadM22x1.5mm
LTotal length101mm
L1Total flange length55mm
ELength of D shape18mm
FLength of threaded part28mm
kgMass2.48kg
CdynDynamic load rating42.9kN
CoStatic load rating36.3kN
PuFatigue load limit1.53kN
