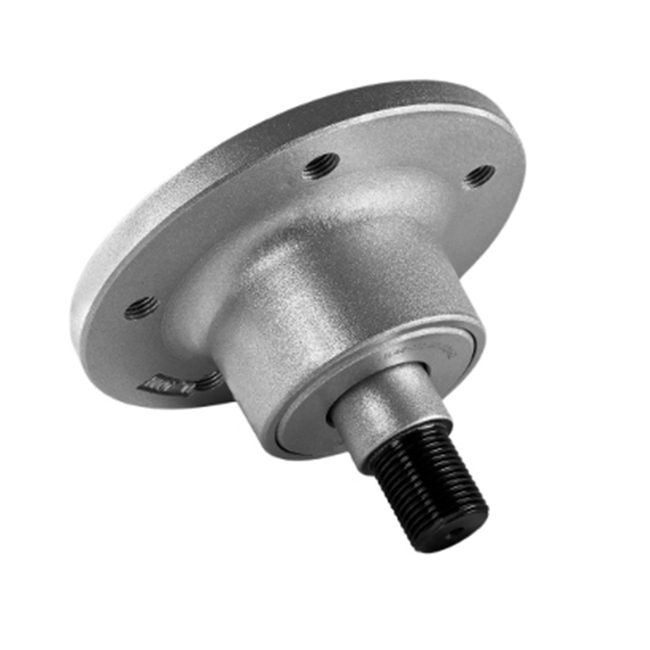

J | Pitch circle diameter | 112 | mm |
D | Outside diameter | 145 | mm |
H/T | Hole/Thread | 5xM12x1.5 | mm |
d | Bore diameter | 30 | mm |
C | D-shape hole cut out dimension | 28 | mm |
M | Outher Thread | M24x2 | mm |
L | Total length | 101 | mm |
L1 | Total flange length | 55 | mm |
E | Length of D shape | 21 | mm |
F | Length of threaded part | 25 | mm |
kg | Mass | 2.48 | kg |
Cdyn | Dynamic load rating | 42.9 | kN |
Co | Static load rating | 36.3 | kN |
Pu | Fatigue load limit | 1.53 | kN |
J | Pitch circle diameter | 112 | mm |
D | Outside diameter | 145 | mm |
H/T | Hole/Thread | 5xM12x1.5 | mm |
d | Bore diameter | 30 | mm |
C | D-shape hole cut out dimension | 28 | mm |
M | Outher Thread | M24x2 | mm |
L | Total length | 101 | mm |
L1 | Total flange length | 55 | mm |
E | Length of D shape | 21 | mm |
F | Length of threaded part | 25 | mm |
kg | Mass | 2.48 | kg |
Cdyn | Dynamic load rating | 42.9 | kN |
Co | Static load rating | 36.3 | kN |
Pu | Fatigue load limit | 1.53 | kN |
