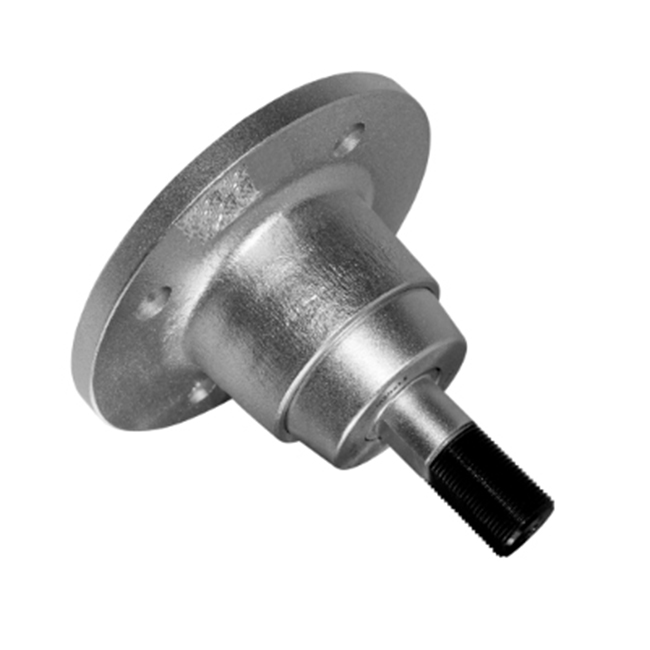

IL40-110/4H-M24x1.5

Availability:

IL40-110 4H -2

JPitch circle diameter110mm
DOutside diameter145mm
H/THole/Thread4x13mm
dBore diameter24mm
CD-shape hole cut out dimension22.5mm
MOuther ThreadM24x1.5mm
LTotal length129mm
L1Total flange length74mm
ELength of D shape20mm
FLength of threaded part35mm
kgMass2.81kg
CdynDynamic load rating42.9kN
CoStatic load rating36.3kN
PuFatigue load limit1.53kN
