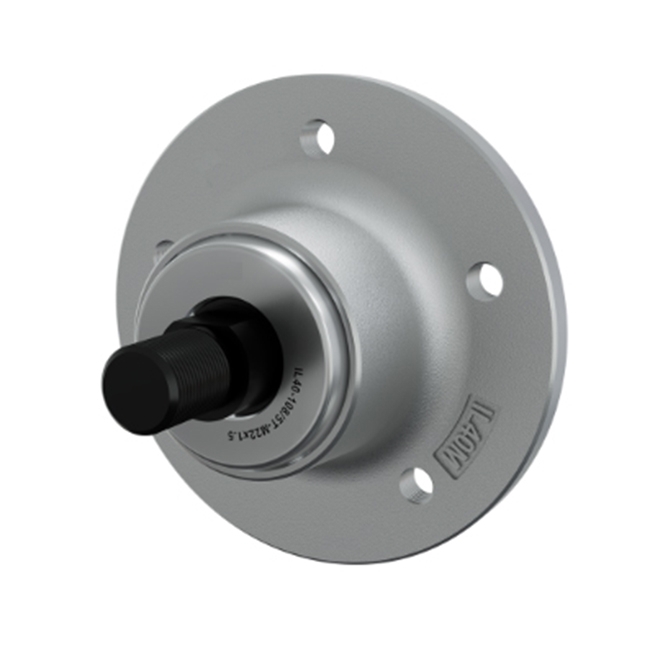

IL40-108/5T-M22x1.5

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL40-108 5T -2

JPitch circle diameter108mm
DOutside diameter145mm
H/THole/Thread5xM12x1.25mm
dBore diameter27.95mm
CD-shape hole cut out dimension25.4mm
MOuther ThreadM22x1.5mm
LTotal length102mm
L1Total flange length60mm
ELength of D shape17mm
FLength of threaded part29mm
kgMass2.7kg
CdynDynamic load rating42.9kN
CoStatic load rating36.3kN
PuFatigue load limit1.53kN
