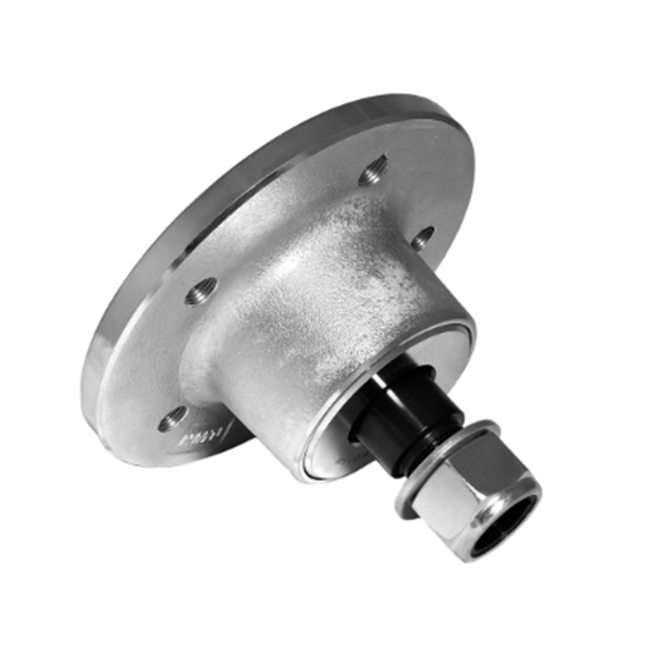

IL40-104/5T-M22x1.5-01

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL40-104 5T -2

JPitch circle diameter104mm
DOutside diameter145mm
H/THole/Thread5xM12x1.25mm
dBore diameter27.95mm
CD-shape hole cut out dimension25.4mm
MOuther ThreadM22x1.5mm
LTotal length101mm
L1Total flange length55mm
ELength of D shape21mm
FLength of threaded part25mm
kgMass2.48kg
CdynDynamic load rating42.9kN
CoStatic load rating36.3kN
PuFatigue load limit1.53kN


Previous:
Next:
Agricultural machinery bearings IL40
