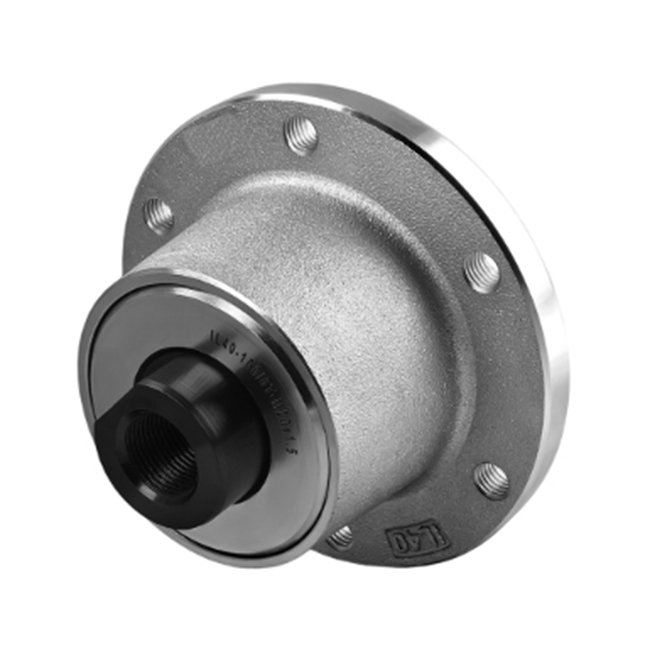

IL40-100/6T-M20x1.5

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL40-100 6T-M20x1.5 -2

JPitch circle diameter100mm
DOutside diameter117mm
H/THole/Thread6xM10mm
dBore diameter34mm
CD-shape hole cut out dimension31mm
GInternal ThreadM20x1.5mm
LTotal length69mm
L1Total flange length55mm
ELength of D shape14mm
FLength of threaded part26mm
kgMass2kg
CdynDynamic load rating42.9kN
CoStatic load rating36.3kN
PuFatigue load limit1.53kN
