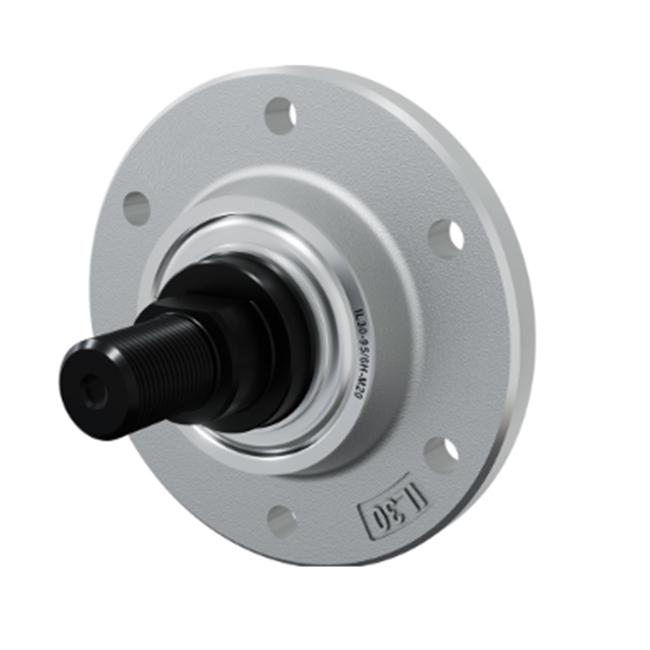

IL30-95/6H-M20

Availability:
Quantity:

PDF Export

IL30-95 6H-M20 -2

JPitch circle diameter95.5mm
DOutside diameter117mm
D1Outside diameter63mm
H/THole/Thread6x8.5mm
dBore diameter28mm
CD-shape hole cut out dimension25.4mm
MOuther ThreadM20mm
LTotal length76mm
L1Total flange length35mm
ELength of D shape15.5mm
FLength of threaded part25.5mm
kgMass1.21kg
CdynDynamic load rating29.6kN
CoStatic load rating21kN
PuFatigue load limit0.88kN
