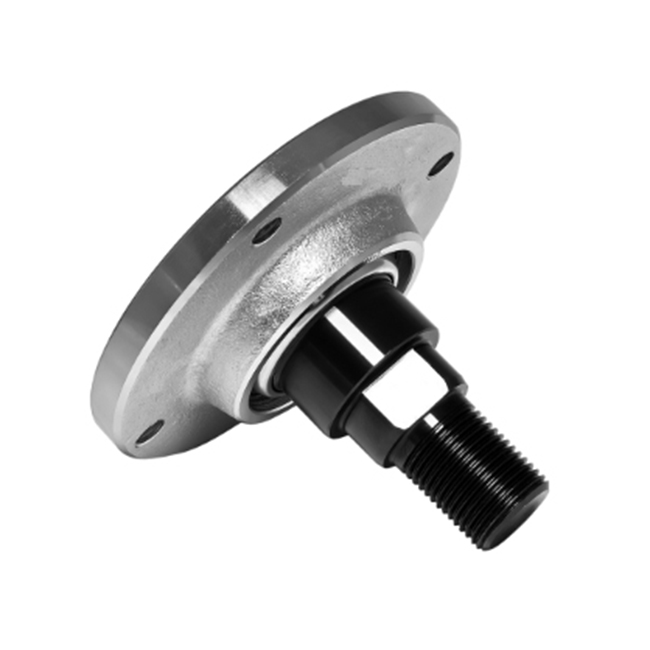

IL30-100/4T-M24x2

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL30-100 4T-M24x2 -2

JPitch circle diameter100mm
DOutside diameter117mm
D1Outside diameter74mm
H/THole/Thread4xM10mm
dBore diameter30mm
CD-shape hole cut out dimension27.5mm
MOuther ThreadM24x2mm
LTotal length89mm
L1Total flange length42.3mm
ELength of D shape18.7mm
FLength of threaded part28mm
kgMass1.51kg
CdynDynamic load rating29.6kN
CoStatic load rating21kN
PuFatigue load limit0.88kN
