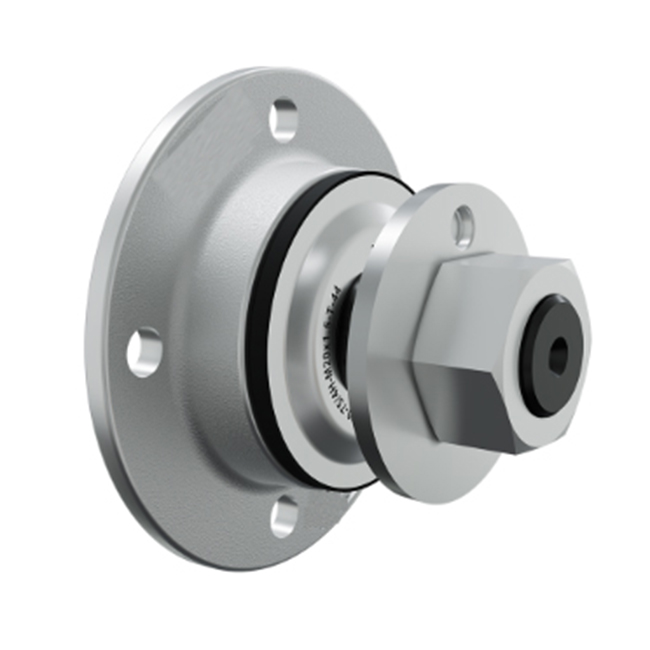

IL20-75/4H-M20x1.5-T-44

Availability:
Quantity:

PDF Export

IL20-75 -2

JPitch circle diameter75mm
DOutside diameter94mm
H/THole/Thread4x8.5mm
dBore diameter25mm
CD-shape hole cut out dimension23mm
MOuther ThreadM20x1.5mm
LTotal length61mm
L1Total flange length26mm
FLength of threaded part20mm
kgMass0.77kg
CdynDynamic load rating22kN
CoStatic load rating15.2kN
PuFatigue load limit0.64kN
