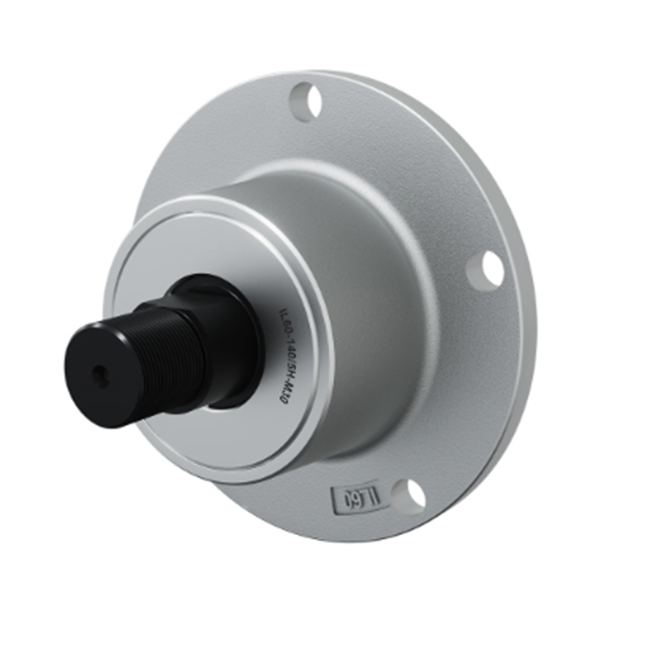

IL60-140/5H-M30

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL60-140 5H-M30 -2

JPitch circle diameter140mm
DOutside diameter160mm
H/THole/Thread5x13mm
dBore diameter35mm
CD-shape hole cut out dimension32.5mm
MOuther ThreadM30x1.5mm
LTotal length110.5mm
L1Total flange length63mm
ELength of D shape19.5mm
FLength of threaded part26mm
kgMass4.3kg
CdynDynamic load rating66.35kN
CoStatic load rating56.5kN
PuFatigue load limit2.37kN


Previous:
Next:
Agricultural machinery bearings IL60
