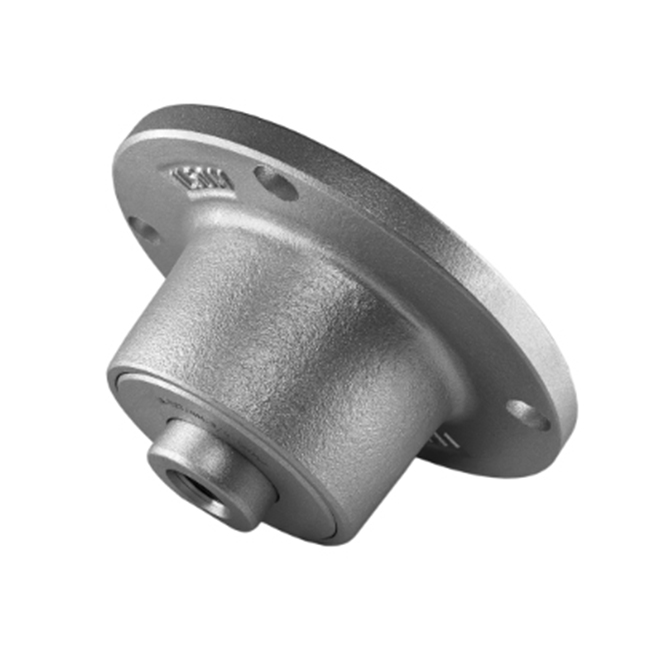

J | Pitch circle diameter | 127 | mm |
D | Outside diameter | 145 | mm |
H/T | Hole/Thread | o13.5±0.7 | mm |
d | Bore diameter | 34.9 | mm |
C | D-shape hole cut out dimension | 31 | mm |
G | Internal Thread | 3/4”–16UNF | mm |
L | Total length | 71 | mm |
L1 | Total flange length | 60 | mm |
E | Length of D shape | 11 | mm |
F | Length of threaded part | 40 | mm |
kg | Mass | 2.7 | kg |
Cdyn | Dynamic load rating | 60 | kN |
Co | Static load rating | 45.8 | kN |
Pu | Fatigue load limit | 1.92 | kN |
J | Pitch circle diameter | 127 | mm |
D | Outside diameter | 145 | mm |
H/T | Hole/Thread | o13.5±0.7 | mm |
d | Bore diameter | 34.9 | mm |
C | D-shape hole cut out dimension | 31 | mm |
G | Internal Thread | 3/4”–16UNF | mm |
L | Total length | 71 | mm |
L1 | Total flange length | 60 | mm |
E | Length of D shape | 11 | mm |
F | Length of threaded part | 40 | mm |
kg | Mass | 2.7 | kg |
Cdyn | Dynamic load rating | 60 | kN |
Co | Static load rating | 45.8 | kN |
Pu | Fatigue load limit | 1.92 | kN |
