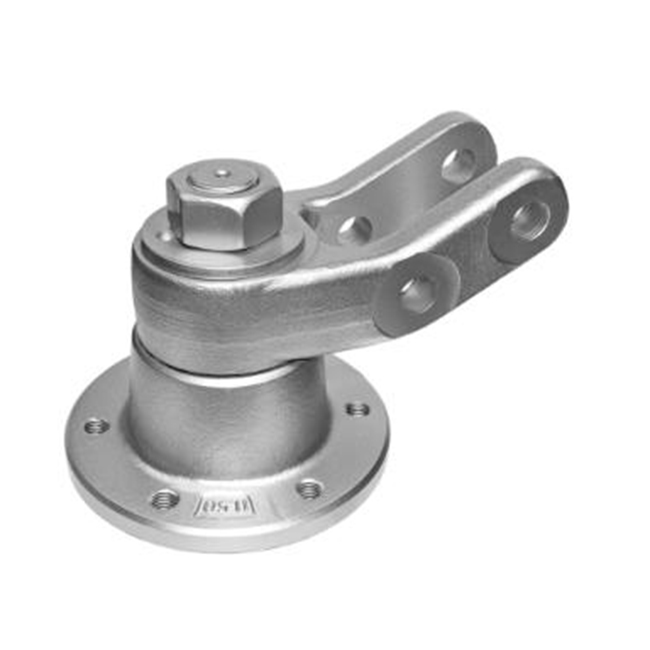

IL50-120/6T-44-R635-ED2

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL50-120 6T-44-R635-ED2 -2

JPitch circle diameter120mm
DOutside diameter145mm
D1Centar bore on the disc45mm
CDistance between holes55mm
C1Disk harrow arm width40mm
MOuther ThreadM27x2mm
H/THole/Thread6xM12x1.75mm
HDistance between the bearing axis and the mounting hole68mm
H2Distance between the bearing axis and the end of the holder137.7mm
NHole diameter17mm
LTotal length131.2mm
L1Total flange length62.2mm
RThe radius of the built-in disk635mm
βAngle of the holder63掳
kgMass6.08kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.92kN
