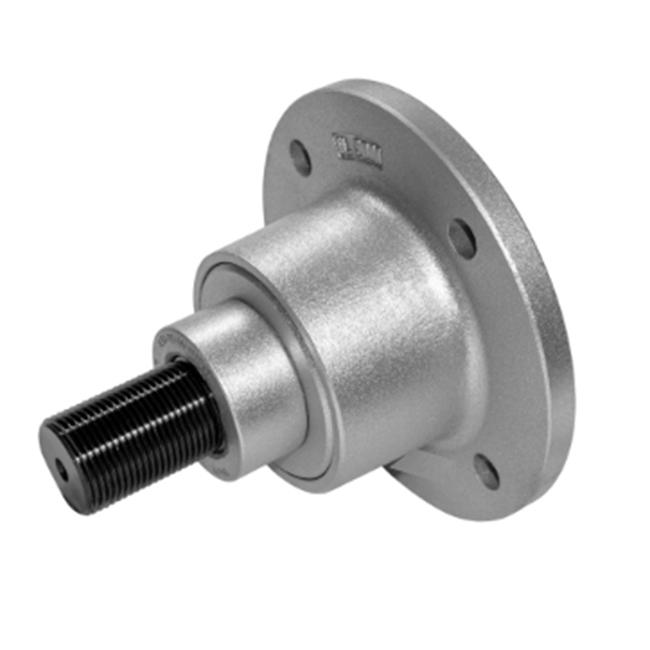

IL50-115/4H-M30x2

Availability:

IL50-115 4H-M30x2 -2

JPitch circle diameter115mm
DOutside diameter145mm
H/THole/Thread12.5mm
CD-shape hole cut out dimension26.9mm
MOuther ThreadM30x2mm
LTotal length127mm
L1Total flange length60mm
ELength of D shape23mm
FLength of threaded part44mm
kgMass3.377kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.924kN
