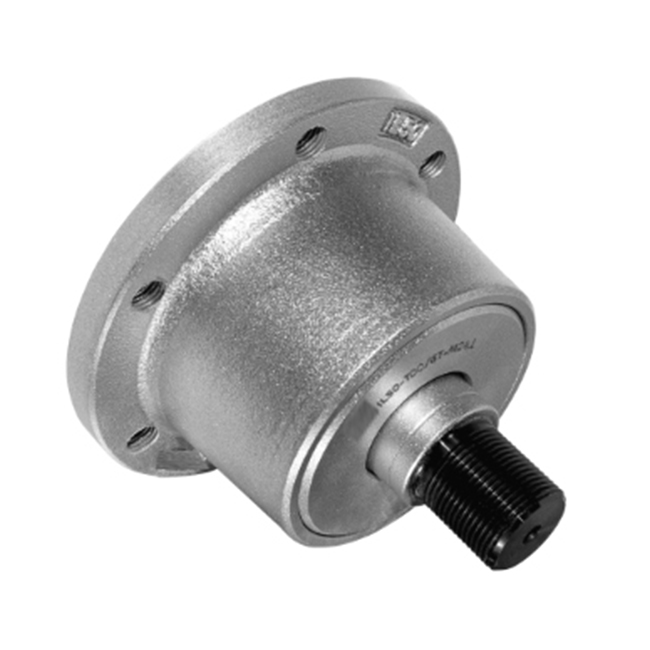

IL50-100/6T-M24.L

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL50-100 6T-M24.L -2

JPitch circle diameter100mm
DOutside diameter117mm
H/THole/Thread6xM10x1.25mm
dBore diameter30mm
CD-shape hole cut out dimension27mm
MOuther ThreadM24x1.5-Leftmm
LTotal length97.5mm
L1Total flange length60mm
ELength of D shape15.5mm
FLength of threaded part22mm
kgMass2.51kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.924kN
