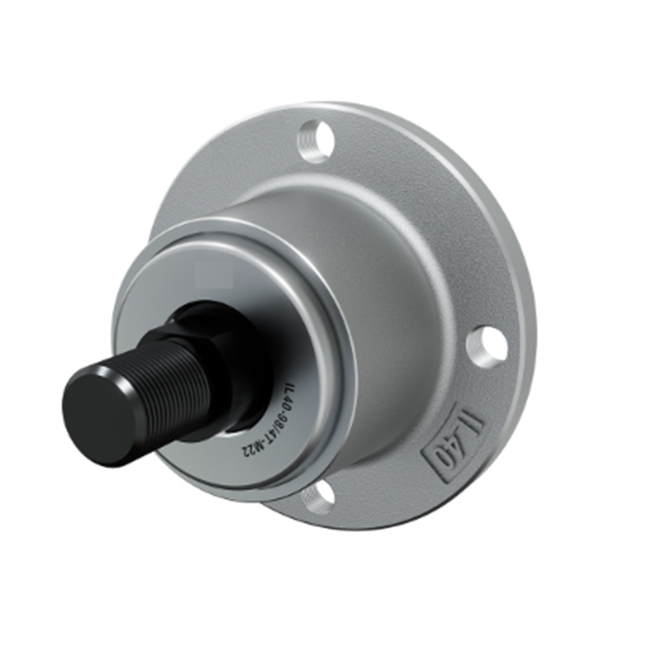

IL40-98/4T-M24

Availability:
Quantity:

PDF Export

IL40-98 4T-M22 -2

JPitch circle diameter98mm
DOutside diameter117mm
H/THole/Thread4xM12x1.25mm
dBore diameter30mm
CD-shape hole cut out dimension27.5mm
MOuther ThreadM24x2mm
LTotal length106mm
L1Total flange length60mm
ELength of D shape17mm
FLength of threaded part29mm
kgMass2.16kg
CdynDynamic load rating42.9kN
CoStatic load rating36.3kN
PuFatigue load limit1.53kN
