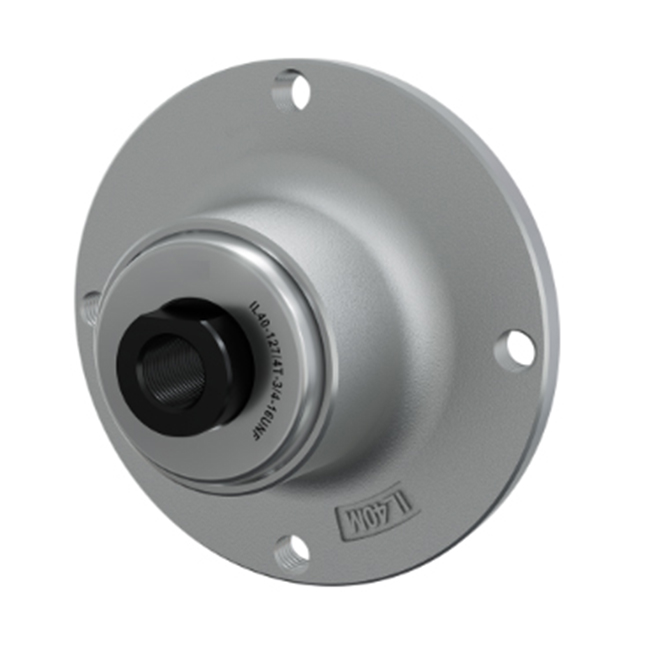

IL40-127/4T-3/4-16UNF

Availability:
Quantity:
Inquire Add to Basket

PDF Export

IL40-127 4T-3 4-16UNF -2

JPitch circle diameter127mm
DOutside diameter145mm
H/THole/Thread4x1/2”-13UNCmm
dBore diameter31.8mm
CD-shape hole cut out dimension29mm
GInternal Thread3/4”-16 UNFmm
LTotal length71.5mm
L1Total flange length60mm
ELength of D shape11.5mm
FLength of threaded part38.1mm
kgMass2.5kg
CdynDynamic load rating42.9kN
CoStatic load rating36.3kN
PuFatigue load limit1.53kN
