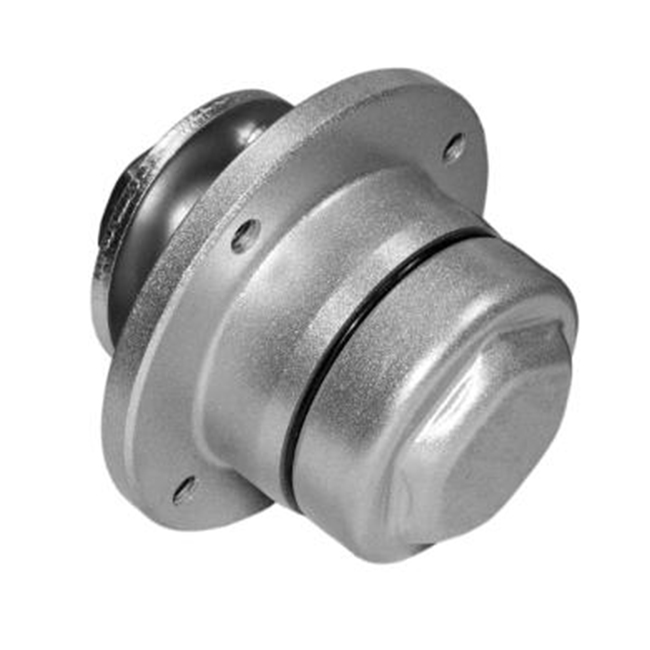

| J | Pitch circle diameter | 88 | mm |
| D | Outside diameter | 105 | mm |
| H/T | Hole/Thread | 4xM8x1.25 | mm |
| d | Bore diameter | 30 | mm |
| C | D-shape hole cut out dimension | 24.7 | mm |
| M | Outher Thread | M22x1.5 | mm |
| L | Total length | 99.5 | mm |
| L1 | Total flange length | 55 | mm |
| L2 | The distance from the machine carrier to the disc | 17,8 | mm |
| E | Length of D shape | 8 | mm |
| F | Length of threaded part | 13.5 | mm |
| kg | Mass | 1.75 | kg |
| Cdyn | Dynamic load rating | 37.5 | kN |
| Co | Static load rating | 26.5 | kN |
| Pu | Fatigue load limit | 1.11 | kN |
| J | Pitch circle diameter | 88 | mm |
| D | Outside diameter | 105 | mm |
| H/T | Hole/Thread | 4xM8x1.25 | mm |
| d | Bore diameter | 30 | mm |
| C | D-shape hole cut out dimension | 24.7 | mm |
| M | Outher Thread | M22x1.5 | mm |
| L | Total length | 99.5 | mm |
| L1 | Total flange length | 55 | mm |
| L2 | The distance from the machine carrier to the disc | 17,8 | mm |
| E | Length of D shape | 8 | mm |
| F | Length of threaded part | 13.5 | mm |
| kg | Mass | 1.75 | kg |
| Cdyn | Dynamic load rating | 37.5 | kN |
| Co | Static load rating | 26.5 | kN |
| Pu | Fatigue load limit | 1.11 | kN |
