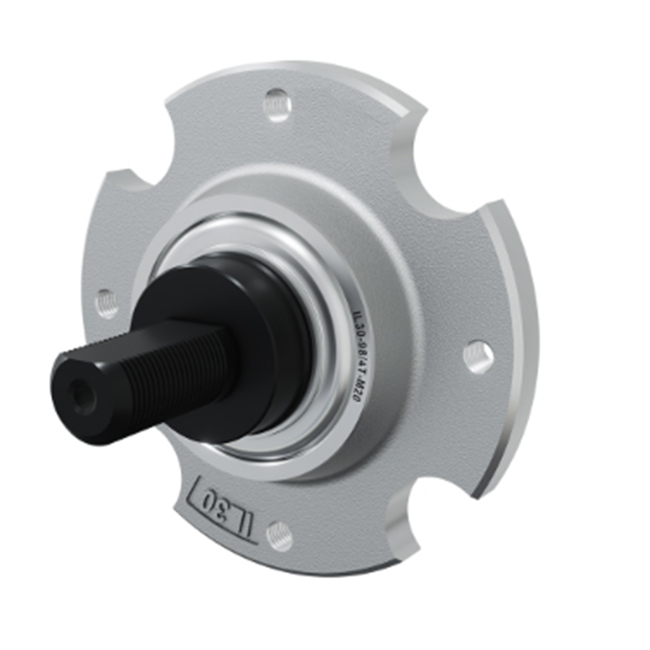

IL30-98/4T-M20

Availability:

IL30-98 4T-M20 -2

JPitch circle diameter98mm
DOutside diameter117mm
D1Outside diameter63mm
H/THole/Thread4xM8mm
dBore diameter20mm
CD-shape hole cut out dimension17mm
MOuther ThreadM20mm
LTotal length77mm
L1Total flange length40mm
ELength of D shape7mm
FLength of threaded part30mm
kgMass1.14kg
CdynDynamic load rating29.6kN
CoStatic load rating21kN
PuFatigue load limit0.88kN
